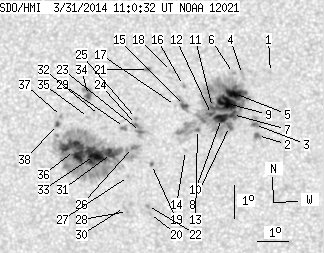

SDO HMI 2014-03-31 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.42 | 539.03 | 67.29 | 282.14 | -13.34 | 73.45 | -17.65 | 112.76 | 0.3209 | -209.1 | -41.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.72 | -11.72 | 77.36 | -13.73 | 111.79 | 0.2515 | 951.0 | 673.8 | |
| 1.40 | 3.68 | 0.72 | 1.90 | -13.60 | 76.85 | -14.25 | 117.74 | 0.2716 | 943.9 | 739.8 | |
| 0.88 | 10.00 | 0.45 | 5.14 | -13.27 | 76.77 | -14.33 | 116.50 | 0.2704 | 1041.9 | 754.0 | |
| 0.00 | 5.00 | 0.00 | 2.57 | -11.75 | 76.48 | -14.62 | 110.82 | 0.2656 | 871.0 | 677.3 | |
| 11.05 | 204.56 | 5.69 | 105.63 | -12.32 | 76.19 | -14.91 | 112.46 | 0.2732 | 1390.2 | 405.1 | |
| 0.00 | 2.02 | 0.00 | 1.04 | -11.72 | 76.20 | -14.90 | 110.36 | 0.2698 | 762.0 | 499.0 | |
| 3.16 | -5.00 | 1.63 | -5.00 | -12.95 | 76.09 | -15.01 | 114.47 | 0.2785 | 1076.4 | 999999 | |
| 2.54 | -5.00 | 1.31 | -5.00 | -13.31 | 75.97 | -15.13 | 115.50 | 0.2826 | 870.4 | 999999 | |
| 18.42 | -5.00 | 9.50 | -5.00 | -12.61 | 75.92 | -15.18 | 113.13 | 0.2791 | 1302.9 | 999999 | |
| 8.77 | -5.00 | 4.53 | -5.00 | -13.06 | 75.73 | -15.37 | 114.38 | 0.2847 | 966.0 | 999999 | |
| 0.96 | -5.00 | 0.50 | -5.00 | -12.72 | 75.47 | -15.63 | 112.94 | 0.2867 | 704.9 | 999999 | |
| 1.58 | -5.00 | 0.82 | -5.00 | -12.93 | 75.42 | -15.68 | 113.57 | 0.2886 | 799.1 | 999999 | |
| 0.70 | -5.00 | 0.36 | -5.00 | -13.36 | 74.95 | -16.15 | 114.38 | 0.2985 | 777.8 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.78 | -13.99 | 74.51 | -16.58 | 115.76 | 0.3089 | 618.0 | 419.0 | |
| 2.37 | 8.51 | 1.23 | 4.42 | -12.63 | 74.58 | -16.52 | 111.65 | 0.2999 | 846.6 | 587.7 | |
| 0.00 | 1.58 | 0.00 | 0.82 | -12.03 | 74.59 | -16.51 | 109.73 | 0.2966 | 717.0 | 589.9 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -12.62 | 74.29 | -16.81 | 111.32 | 0.3043 | 252.0 | 177.3 | |
| 0.00 | 2.46 | 0.00 | 1.27 | -11.59 | 74.23 | -16.87 | 108.00 | 0.3002 | -694.0 | -517.8 | |
| 0.53 | 1.58 | 0.28 | 0.83 | -14.37 | 73.38 | -17.71 | 115.56 | 0.3282 | 604.5 | 464.9 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -15.85 | 73.19 | -17.91 | 119.38 | 0.3410 | -838.0 | -722.0 | |
| 0.79 | 2.63 | 0.41 | 1.37 | -11.51 | 73.50 | -17.60 | 107.13 | 0.3114 | -971.0 | -740.8 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -15.61 | 73.15 | -17.95 | 118.68 | 0.3399 | -959.0 | -843.4 | |
| 0.96 | 10.79 | 0.51 | 5.65 | -13.36 | 73.11 | -17.99 | 112.38 | 0.3264 | -1053.8 | -647.2 | |
| 0.70 | -23.00 | 0.37 | -23.00 | -13.15 | 73.00 | -18.10 | 111.64 | 0.3270 | -1189.1 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -12.97 | 73.01 | -18.09 | 111.13 | 0.3258 | -1060.0 | -879.7 | |
| 0.61 | 255.52 | 0.32 | 135.33 | -13.84 | 72.81 | -18.29 | 113.44 | 0.3335 | -1104.1 | -385.4 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -14.71 | 72.61 | -18.49 | 115.64 | 0.3418 | -720.0 | -606.1 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -15.76 | 72.48 | -18.62 | 118.31 | 0.3506 | -787.0 | -687.9 | |
| 0.00 | 3.42 | 0.00 | 1.80 | -13.22 | 72.60 | -18.50 | 111.49 | 0.3334 | -1028.0 | -787.2 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -15.64 | 72.39 | -18.71 | 117.88 | 0.3510 | -845.0 | -686.7 | |
| 11.32 | -26.00 | 5.97 | -26.00 | -13.99 | 72.11 | -18.98 | 113.19 | 0.3449 | -1215.9 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -12.83 | 71.82 | -19.28 | 109.71 | 0.3435 | -844.0 | -681.2 | |
| 26.93 | -26.00 | 14.25 | -26.00 | -14.03 | 71.56 | -19.54 | 112.77 | 0.3535 | -1219.1 | 999999 | |
| 2.11 | 9.65 | 1.11 | 5.09 | -12.22 | 71.51 | -19.59 | 107.75 | 0.3455 | -1165.2 | -874.1 | |
| 0.00 | 1.84 | 0.00 | 0.97 | -12.88 | 71.46 | -19.64 | 109.55 | 0.3492 | -669.0 | -506.0 | |
| 31.32 | -26.00 | 16.63 | -26.00 | -13.85 | 70.91 | -20.18 | 111.74 | 0.3622 | -1005.3 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -12.81 | 70.58 | -20.52 | 108.72 | 0.3625 | -902.0 | -783.3 | |
| 1.32 | 2.63 | 0.70 | 1.40 | -13.05 | 70.43 | -20.67 | 109.24 | 0.3658 | -877.7 | -785.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
