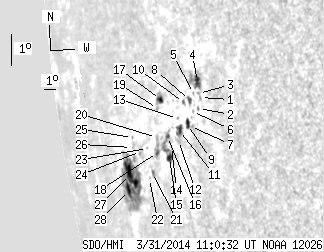

SDO HMI 2014-03-31 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.72 | 165.70 | 68.00 | 280.73 | -11.38 | 17.20 | -73.90 | 99.94 | 0.9563 | -5.7 | -115.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 1.47 | -10.23 | 23.04 | -68.06 | 98.37 | 0.9243 | 559.0 | 544.9 | |
| 0.00 | 1.14 | 0.00 | 1.48 | -10.53 | 22.74 | -68.36 | 98.71 | 0.9262 | 327.0 | 332.2 | |
| 0.00 | 0.88 | 0.00 | 1.13 | -10.09 | 22.94 | -68.16 | 98.23 | 0.9250 | 566.0 | 560.5 | |
| 4.56 | 15.26 | 5.88 | 19.80 | -9.74 | 23.01 | -68.09 | 97.84 | 0.9247 | 488.4 | 30.3 | |
| 0.00 | 0.79 | 0.00 | 1.04 | -10.05 | 22.54 | -68.56 | 98.21 | 0.9276 | 243.0 | 223.9 | |
| 0.00 | 0.53 | 0.00 | 0.70 | -10.57 | 22.21 | -68.89 | 98.78 | 0.9295 | 368.0 | 280.5 | |
| 0.00 | 1.05 | 0.00 | 1.42 | -10.98 | 21.83 | -69.27 | 99.25 | 0.9318 | 380.0 | 343.3 | |
| 1.32 | 3.25 | 1.76 | 4.33 | -10.22 | 22.12 | -68.98 | 98.41 | 0.9302 | 378.0 | 250.2 | |
| 2.81 | 3.51 | 3.82 | 4.78 | -10.90 | 21.61 | -69.49 | 99.17 | 0.9332 | 252.9 | 222.6 | |
| 0.00 | 1.49 | 0.00 | 2.03 | -10.22 | 21.60 | -69.50 | 98.45 | 0.9335 | 130.0 | 86.7 | |
| 3.60 | 6.67 | 5.07 | 9.40 | -11.00 | 20.83 | -70.27 | 99.32 | 0.9379 | 459.4 | 297.7 | |
| 0.00 | 2.89 | 0.00 | 4.14 | -11.28 | 20.58 | -70.52 | 99.63 | 0.9393 | 109.0 | 141.1 | |
| 0.00 | 0.96 | 0.00 | 1.36 | -10.63 | 20.85 | -70.25 | 98.93 | 0.9379 | 203.0 | 155.8 | |
| 0.00 | 0.79 | 0.00 | 1.17 | -11.38 | 19.86 | -71.24 | 99.78 | 0.9434 | 298.0 | 277.9 | |
| 3.42 | 16.93 | 5.13 | 25.45 | -11.68 | 19.48 | -71.62 | 100.11 | 0.9454 | 289.9 | -189.8 | |
| 1.05 | -15.00 | 1.57 | -15.00 | -11.06 | 19.67 | -71.43 | 99.44 | 0.9446 | -486.8 | 999999 | |
| 2.37 | 7.37 | 3.55 | 11.10 | -9.92 | 19.62 | -71.48 | 98.25 | 0.9452 | -45.3 | -264.4 | |
| 0.88 | 6.14 | 1.39 | 9.71 | -11.41 | 18.44 | -72.66 | 99.89 | 0.9512 | -494.2 | -455.1 | |
| 0.00 | 1.49 | 0.00 | 2.28 | -10.15 | 19.20 | -71.90 | 98.51 | 0.9475 | -221.0 | -237.8 | |
| 0.00 | 2.11 | 0.00 | 3.30 | -10.97 | 18.62 | -72.48 | 99.42 | 0.9504 | -397.0 | -370.2 | |
| 0.53 | 2.54 | 0.87 | 4.20 | -11.93 | 17.54 | -73.56 | 100.48 | 0.9556 | 157.5 | 108.3 | |
| 0.00 | 0.44 | 0.00 | 0.75 | -12.06 | 17.11 | -73.99 | 100.65 | 0.9578 | 25.0 | 2.8 | |
| 0.00 | 0.61 | 0.00 | 1.02 | -11.19 | 17.52 | -73.58 | 99.71 | 0.9560 | 142.0 | 48.4 | |
| 0.00 | 2.54 | 0.00 | 4.42 | -11.19 | 16.72 | -74.38 | 99.77 | 0.9599 | -360.0 | -389.6 | |
| 0.00 | 0.88 | 0.00 | 1.58 | -10.70 | 16.14 | -74.96 | 99.29 | 0.9628 | -269.0 | -267.0 | |
| 0.00 | 0.79 | 0.00 | 1.45 | -10.97 | 15.82 | -75.28 | 99.60 | 0.9642 | -478.0 | -504.9 | |
| 15.53 | 83.51 | 29.71 | 161.22 | -11.72 | 15.09 | -76.01 | 100.42 | 0.9672 | -342.3 | -144.7 | |
| 4.65 | -27.00 | 9.25 | -27.00 | -12.14 | 14.45 | -76.65 | 100.90 | 0.9698 | 132.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
