SDO HMI 2014-03-31 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.58 | 0.00 | 3.70 | 15.76 | 107.55 | 17.00 | 323.17 | 0.4695 | 596.8 | 469.8 | |
|
previous
or next observation for the same group /

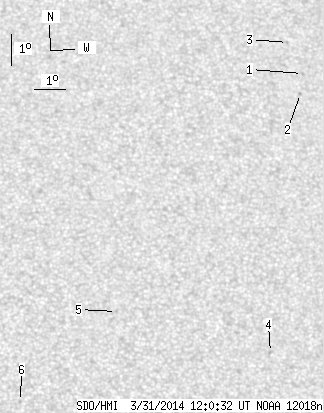

back to the solar disc SDO HMI 2014-03-31 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.72 | 19.88 | 110.12 | 19.57 | 324.35 | 0.5425 | 608.0 | 542.2 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 19.21 | 109.97 | 19.41 | 323.79 | 0.5334 | 792.0 | 621.2 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 20.90 | 109.75 | 19.19 | 326.00 | 0.5514 | 588.0 | 498.6 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 10.80 | 108.21 | 17.66 | 314.54 | 0.4198 | 88.0 | 97.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 11.94 | 103.39 | 12.84 | 325.35 | 0.3842 | 860.0 | 627.8 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 9.06 | 100.30 | 9.75 | 328.01 | 0.3170 | 645.0 | 485.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
