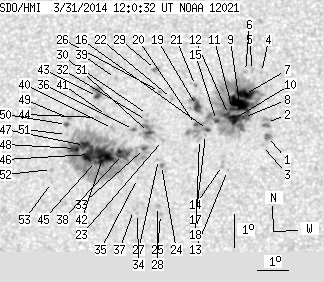

SDO HMI 2014-03-31 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.57 | 555.97 | 64.55 | 290.02 | -13.33 | 73.51 | -17.04 | 113.38 | 0.3116 | -174.2 | -33.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.21 | 0.00 | 2.16 | -13.62 | 76.84 | -13.72 | 118.64 | 0.2637 | 974.0 | 854.8 | |
| 0.00 | 8.24 | 0.00 | 4.23 | -13.19 | 76.83 | -13.72 | 117.17 | 0.2608 | 524.0 | 823.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -13.88 | 76.66 | -13.89 | 119.26 | 0.2683 | 686.0 | 496.6 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -11.68 | 76.76 | -13.80 | 111.59 | 0.2523 | 937.0 | 723.6 | |
| 0.00 | 1.75 | 0.00 | 0.90 | -11.62 | 76.48 | -14.08 | 110.98 | 0.2563 | 711.0 | 662.0 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -11.64 | 76.25 | -14.30 | 110.80 | 0.2599 | 751.0 | 618.7 | |
| 12.28 | 214.97 | 6.30 | 110.70 | -12.33 | 76.18 | -14.37 | 113.20 | 0.2649 | 1347.0 | 399.1 | |
| 1.58 | -7.00 | 0.81 | -7.00 | -13.02 | 76.11 | -14.44 | 115.50 | 0.2704 | 1083.4 | 999999 | |
| 18.33 | -7.00 | 9.43 | -7.00 | -12.60 | 76.01 | -14.54 | 113.90 | 0.2692 | 1321.4 | 999999 | |
| 7.89 | -7.00 | 4.07 | -7.00 | -13.04 | 75.82 | -14.73 | 115.18 | 0.2749 | 997.4 | 999999 | |
| 0.88 | -7.00 | 0.45 | -7.00 | -12.77 | 75.78 | -14.77 | 114.19 | 0.2739 | 917.2 | 999999 | |
| 0.79 | -7.00 | 0.41 | -7.00 | -12.92 | 75.64 | -14.91 | 114.51 | 0.2769 | 838.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -14.60 | 75.50 | -15.06 | 119.74 | 0.2908 | 561.0 | 452.6 | |
| 0.00 | 3.25 | 0.00 | 1.68 | -14.45 | 75.35 | -15.20 | 119.04 | 0.2918 | 595.0 | 591.7 | |
| 1.75 | -7.00 | 0.91 | -7.00 | -13.09 | 75.25 | -15.30 | 114.56 | 0.2839 | 322.1 | 999999 | |
| 1.40 | -7.00 | 0.73 | -7.00 | -13.35 | 74.94 | -15.61 | 115.02 | 0.2902 | 617.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -13.50 | 74.87 | -15.68 | 115.39 | 0.2923 | 403.0 | 360.8 | |
| 0.00 | 2.10 | 0.00 | 1.09 | -13.64 | 74.67 | -15.88 | 115.59 | 0.2962 | 78.0 | 49.6 | |
| 6.14 | 13.42 | 3.18 | 6.94 | -12.61 | 74.64 | -15.91 | 112.28 | 0.2904 | 911.9 | 447.6 | |
| 0.88 | -7.00 | 0.45 | -7.00 | -13.19 | 74.57 | -15.98 | 114.04 | 0.2948 | -580.0 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -12.01 | 74.65 | -15.90 | 110.30 | 0.2871 | 835.0 | 709.2 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.38 | 73.86 | -16.69 | 110.69 | 0.3013 | -216.0 | -299.3 | |
| 0.00 | 1.67 | 0.00 | 0.87 | -13.63 | 73.48 | -17.07 | 114.14 | 0.3141 | 78.0 | 68.1 | |
| 0.44 | 1.84 | 0.23 | 0.96 | -14.39 | 73.39 | -17.16 | 116.25 | 0.3201 | 737.2 | 549.6 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -15.87 | 73.23 | -17.32 | 120.18 | 0.3328 | -821.0 | -726.8 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -12.15 | 73.49 | -17.06 | 109.62 | 0.3059 | -718.0 | -584.7 | |
| 0.00 | 1.84 | 0.00 | 0.96 | -14.20 | 73.30 | -17.25 | 115.62 | 0.3202 | -115.0 | -134.5 | |
| 0.00 | 1.75 | 0.00 | 0.92 | -15.62 | 73.15 | -17.40 | 119.42 | 0.3321 | -941.0 | -835.6 | |
| 0.00 | 3.16 | 0.00 | 1.64 | -11.49 | 73.40 | -17.15 | 107.44 | 0.3042 | -960.0 | -810.8 | |
| 2.02 | 15.00 | 1.05 | 7.84 | -13.38 | 73.05 | -17.51 | 112.91 | 0.3191 | -931.2 | -478.5 | |
| 0.00 | 1.49 | 0.00 | 0.78 | -12.83 | 73.05 | -17.50 | 111.30 | 0.3160 | -762.0 | -628.4 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -13.01 | 73.01 | -17.54 | 111.79 | 0.3177 | -933.0 | -737.7 | |
| 1.23 | 241.37 | 0.64 | 127.44 | -13.85 | 72.88 | -17.67 | 114.13 | 0.3244 | -1036.3 | -397.7 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -15.81 | 72.48 | -18.07 | 119.09 | 0.3430 | -784.0 | -630.8 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -14.75 | 72.58 | -17.97 | 116.34 | 0.3345 | -773.0 | -637.3 | |
| 0.70 | 3.07 | 0.37 | 1.61 | -13.27 | 72.57 | -17.98 | 112.12 | 0.3258 | -1068.4 | -795.7 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -15.71 | 72.36 | -18.19 | 118.69 | 0.3441 | -660.0 | -578.0 | |
| 9.91 | -33.00 | 5.21 | -33.00 | -14.01 | 72.15 | -18.40 | 113.82 | 0.3362 | -1168.8 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -11.71 | 72.10 | -18.45 | 107.12 | 0.3257 | -808.0 | -576.8 | |
| 0.00 | 2.37 | 0.00 | 1.24 | -13.21 | 71.89 | -18.66 | 111.33 | 0.3358 | -878.0 | -748.1 | |
| 0.00 | 2.02 | 0.00 | 1.06 | -12.82 | 71.73 | -18.82 | 110.05 | 0.3363 | -843.0 | -581.2 | |
| 25.17 | -33.00 | 13.28 | -33.00 | -14.02 | 71.53 | -19.02 | 113.23 | 0.3456 | -1247.3 | 999999 | |
| 2.54 | 9.65 | 1.34 | 5.07 | -12.23 | 71.48 | -19.07 | 108.18 | 0.3375 | -1131.5 | -854.4 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -12.87 | 71.43 | -19.12 | 109.94 | 0.3411 | -654.0 | -498.9 | |
| 1.75 | -33.00 | 0.93 | -33.00 | -14.19 | 71.26 | -19.30 | 113.43 | 0.3507 | -852.1 | 999999 | |
| 13.68 | -33.00 | 7.24 | -33.00 | -13.97 | 71.08 | -19.47 | 112.68 | 0.3521 | -1104.8 | 999999 | |
| 6.23 | -33.00 | 3.29 | -33.00 | -13.69 | 70.94 | -19.61 | 111.80 | 0.3528 | -1046.9 | 999999 | |
| 7.02 | -33.00 | 3.72 | -33.00 | -13.77 | 70.64 | -19.91 | 111.76 | 0.3577 | -803.6 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -12.86 | 70.52 | -20.03 | 109.21 | 0.3552 | -843.0 | -715.5 | |
| 0.96 | 2.10 | 0.51 | 1.12 | -13.04 | 70.41 | -20.14 | 109.60 | 0.3577 | -921.1 | -796.6 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.34 | 70.38 | -20.17 | 110.39 | 0.3595 | -740.0 | -512.6 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -14.37 | 69.79 | -20.76 | 112.61 | 0.3736 | -741.0 | -530.8 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -14.76 | 69.75 | -20.80 | 113.57 | 0.3763 | -598.0 | -446.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
