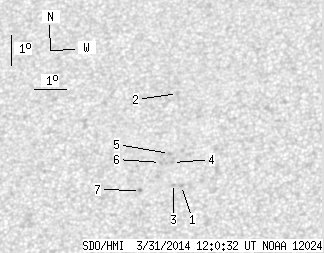

SDO HMI 2014-03-31 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.86 | 0.00 | 4.81 | 17.85 | 90.60 | 0.05 | 359.91 | 0.4151 | -566.6 | -442.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 0.90 | 16.92 | 91.00 | 0.45 | 358.93 | 0.4004 | -883.0 | -727.1 | |
| 0.00 | 1.58 | 0.00 | 0.87 | 19.97 | 90.88 | 0.33 | 359.30 | 0.4486 | 806.0 | 645.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 16.99 | 90.75 | 0.20 | 359.53 | 0.4014 | -660.0 | -702.4 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 17.68 | 90.72 | 0.17 | 359.61 | 0.4124 | -916.0 | -768.0 | |
| 0.00 | 1.84 | 0.00 | 1.00 | 17.97 | 90.62 | 0.07 | 359.83 | 0.4171 | -709.0 | -597.2 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 17.68 | 90.34 | -0.21 | 0.49 | 0.4124 | -681.0 | -558.5 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 16.76 | 89.72 | -0.84 | 2.02 | 0.3980 | -923.0 | -841.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
