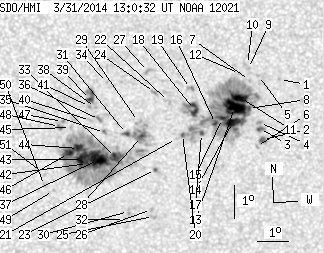

SDO HMI 2014-03-31 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.19 | 593.79 | 70.84 | 308.79 | -13.29 | 73.52 | -16.48 | 113.91 | 0.3030 | -133.4 | -85.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.58 | -11.81 | 77.49 | -12.51 | 113.91 | 0.2331 | 884.0 | 739.2 | |
| 1.58 | 5.17 | 0.81 | 2.65 | -13.60 | 76.86 | -13.14 | 119.56 | 0.2553 | 1003.2 | 776.4 | |
| 1.40 | 3.86 | 0.72 | 1.98 | -13.27 | 76.78 | -13.22 | 118.25 | 0.2538 | 1021.4 | 763.9 | |
| 0.00 | 2.19 | 0.00 | 1.12 | -13.09 | 76.79 | -13.21 | 117.62 | 0.2524 | 1113.0 | 907.3 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -11.67 | 76.84 | -13.17 | 112.39 | 0.2424 | 879.0 | 687.7 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -13.81 | 76.66 | -13.35 | 119.92 | 0.2598 | 663.0 | 547.3 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -11.81 | 76.55 | -13.46 | 112.54 | 0.2477 | 902.0 | 730.5 | |
| 1.23 | 251.25 | 0.63 | 129.11 | -12.65 | 76.47 | -13.53 | 115.55 | 0.2542 | 1004.9 | 346.5 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -11.45 | 76.53 | -13.47 | 111.13 | 0.2459 | 860.0 | 678.4 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -11.33 | 76.51 | -13.50 | 110.63 | 0.2456 | 557.0 | 490.1 | |
| 11.49 | -8.00 | 5.89 | -8.00 | -12.32 | 76.20 | -13.80 | 113.93 | 0.2561 | 1368.6 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -11.59 | 76.24 | -13.76 | 111.30 | 0.2512 | 707.0 | 642.9 | |
| 24.64 | -8.00 | 12.64 | -8.00 | -12.61 | 76.03 | -13.97 | 114.75 | 0.2606 | 1286.7 | 999999 | |
| 9.91 | -8.00 | 5.09 | -8.00 | -13.06 | 75.94 | -14.06 | 116.20 | 0.2650 | 1053.3 | 999999 | |
| 2.28 | -8.00 | 1.17 | -8.00 | -12.93 | 75.63 | -14.37 | 115.30 | 0.2688 | 847.8 | 999999 | |
| 2.10 | -8.00 | 1.08 | -8.00 | -13.08 | 75.40 | -14.60 | 115.47 | 0.2732 | 395.4 | 999999 | |
| 1.23 | -8.00 | 0.63 | -8.00 | -13.36 | 74.94 | -15.07 | 115.79 | 0.2821 | 592.7 | 999999 | |
| 6.58 | -8.00 | 3.39 | -8.00 | -12.64 | 74.76 | -15.24 | 113.14 | 0.2803 | 810.5 | 999999 | |
| 0.00 | 3.07 | 0.00 | 1.58 | -12.00 | 74.67 | -15.33 | 110.88 | 0.2781 | 809.0 | 672.9 | |
| 0.79 | -8.00 | 0.41 | -8.00 | -13.38 | 74.33 | -15.67 | 115.02 | 0.2914 | -714.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -13.49 | 74.13 | -15.87 | 115.13 | 0.2951 | -720.0 | -510.2 | |
| 0.00 | 2.89 | 0.00 | 1.50 | -12.37 | 73.95 | -16.05 | 111.32 | 0.2913 | -40.0 | -145.0 | |
| 0.53 | 1.75 | 0.27 | 0.91 | -14.40 | 73.39 | -16.62 | 116.97 | 0.3122 | 717.8 | 573.1 | |
| 0.00 | 2.81 | 0.00 | 1.45 | -12.08 | 73.52 | -16.48 | 109.96 | 0.2965 | -942.0 | -705.4 | |
| 0.00 | 2.72 | 0.00 | 1.42 | -15.82 | 73.20 | -16.80 | 120.77 | 0.3250 | -621.0 | -668.2 | |
| 0.00 | 1.49 | 0.00 | 0.78 | -15.61 | 73.16 | -16.85 | 120.11 | 0.3241 | -972.0 | -779.3 | |
| 0.00 | 3.33 | 0.00 | 1.73 | -11.45 | 73.37 | -16.63 | 107.74 | 0.2959 | -766.0 | -797.2 | |
| 2.28 | 28.94 | 1.19 | 15.08 | -13.39 | 73.01 | -16.99 | 113.52 | 0.3114 | -895.2 | -573.7 | |
| 0.00 | 2.02 | 0.00 | 1.05 | -12.94 | 72.95 | -17.05 | 112.07 | 0.3098 | -628.0 | -655.5 | |
| 0.00 | 2.19 | 0.00 | 1.15 | -15.64 | 72.41 | -17.60 | 119.23 | 0.3351 | -696.0 | -721.2 | |
| 1.67 | -28.00 | 0.87 | -28.00 | -13.29 | 72.54 | -17.47 | 112.69 | 0.3180 | -988.6 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -15.88 | 72.25 | -17.75 | 119.68 | 0.3390 | -671.0 | -537.8 | |
| 8.59 | 242.57 | 4.50 | 127.65 | -14.00 | 72.12 | -17.88 | 114.33 | 0.3284 | -1170.4 | -408.2 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -11.73 | 72.04 | -17.97 | 107.54 | 0.3182 | -617.0 | -575.7 | |
| 0.00 | 1.93 | 0.00 | 1.01 | -13.23 | 71.83 | -18.17 | 111.83 | 0.3285 | -1054.0 | -890.5 | |
| 0.00 | 2.46 | 0.00 | 1.29 | -12.83 | 71.70 | -18.30 | 110.55 | 0.3285 | -980.0 | -728.1 | |
| 25.34 | -33.00 | 13.33 | -33.00 | -14.04 | 71.57 | -18.43 | 113.87 | 0.3369 | -1239.5 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -12.47 | 71.60 | -18.41 | 109.40 | 0.3283 | -937.0 | -809.6 | |
| 2.37 | 10.52 | 1.24 | 5.52 | -12.22 | 71.45 | -18.55 | 108.55 | 0.3294 | -1141.6 | -873.1 | |
| 0.00 | 1.93 | 0.00 | 1.01 | -12.85 | 71.41 | -18.60 | 110.35 | 0.3331 | -811.0 | -556.9 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -12.43 | 71.41 | -18.60 | 109.13 | 0.3311 | -918.0 | -718.9 | |
| 3.24 | -33.00 | 1.71 | -33.00 | -14.15 | 71.20 | -18.80 | 113.79 | 0.3431 | -1052.1 | 999999 | |
| 12.89 | -33.00 | 6.80 | -33.00 | -14.02 | 71.05 | -18.95 | 113.30 | 0.3446 | -1077.9 | 999999 | |
| 8.95 | -33.00 | 4.72 | -33.00 | -13.68 | 70.95 | -19.06 | 112.28 | 0.3443 | -1065.3 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -13.04 | 70.74 | -19.26 | 110.31 | 0.3442 | -156.0 | -163.6 | |
| 7.10 | -33.00 | 3.75 | -33.00 | -13.82 | 70.61 | -19.39 | 112.35 | 0.3502 | -779.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -12.85 | 70.50 | -19.51 | 109.59 | 0.3471 | -826.0 | -737.5 | |
| 0.00 | 3.16 | 0.00 | 1.67 | -13.00 | 70.39 | -19.62 | 109.90 | 0.3495 | -871.0 | -737.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -14.92 | 70.01 | -19.99 | 114.70 | 0.3652 | -692.0 | -534.1 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -14.76 | 69.73 | -20.27 | 114.02 | 0.3684 | -615.0 | -519.0 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.42 | 69.76 | -20.24 | 113.19 | 0.3661 | -664.0 | -530.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
