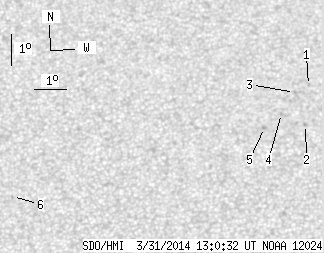

SDO HMI 2014-03-31 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.01 | 0.00 | 3.78 | 16.87 | 89.17 | -0.84 | 2.22 | 0.4030 | -771.0 | -652.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.33 | 18.17 | 91.11 | 1.11 | 357.48 | 0.4206 | -547.0 | -452.1 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 16.89 | 91.01 | 1.01 | 357.58 | 0.4001 | -889.0 | -703.1 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 17.94 | 90.67 | 0.67 | 358.47 | 0.4167 | -757.0 | -584.2 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 17.25 | 90.26 | 0.26 | 359.39 | 0.4055 | -841.0 | -731.5 | |
| 0.00 | 1.84 | 0.00 | 0.99 | 16.79 | 89.73 | -0.27 | 0.66 | 0.3982 | -905.0 | -765.3 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 14.64 | 81.90 | -8.10 | 20.71 | 0.3871 | -687.0 | -502.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
