SDO HMI 2014-03-31 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.21 | 25.96 | 5.33 | 14.97 | -23.95 | 116.51 | 26.51 | 232.72 | 0.5146 | 258.7 | 120.8 | |
|
previous
or next observation for the same group /

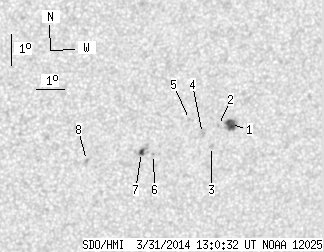

back to the solar disc SDO HMI 2014-03-31 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.02 | 12.28 | 4.08 | 7.14 | -23.54 | 117.72 | 27.72 | 234.51 | 0.5257 | 919.2 | 643.4 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -23.59 | 117.29 | 27.29 | 234.07 | 0.5209 | 860.0 | 726.5 | |
| 0.00 | 1.93 | 0.00 | 1.12 | -24.26 | 117.18 | 27.18 | 232.86 | 0.5245 | 782.0 | 582.7 | |
| 0.00 | 1.93 | 0.00 | 1.11 | -23.87 | 116.76 | 26.76 | 233.14 | 0.5166 | 769.0 | 649.2 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -23.46 | 116.20 | 26.19 | 233.35 | 0.5068 | -670.0 | -485.3 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -24.61 | 115.13 | 25.13 | 230.38 | 0.5032 | -760.0 | -606.5 | |
| 2.19 | 5.09 | 1.25 | 2.90 | -24.57 | 114.69 | 24.68 | 230.01 | 0.4977 | -880.0 | -766.8 | |
| 0.00 | 1.75 | 0.00 | 0.99 | -24.90 | 112.77 | 22.77 | 227.41 | 0.4788 | -700.0 | -632.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
