SDO HMI 2014-03-31 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.35 | 622.40 | 65.57 | 322.86 | -13.30 | 73.44 | -16.01 | 114.53 | 0.2959 | -49.7 | -93.7 | |
|
previous
or next observation for the same group /

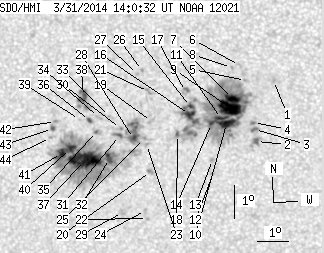

back to the solar disc SDO HMI 2014-03-31 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.84 | 0.00 | 0.94 | -11.82 | 77.50 | -11.95 | 114.87 | 0.2245 | 978.0 | 765.0 | |
| 1.49 | 4.74 | 0.76 | 2.42 | -13.64 | 76.87 | -12.58 | 120.73 | 0.2473 | 991.4 | 745.6 | |
| 0.00 | 3.24 | 0.00 | 1.66 | -13.28 | 76.83 | -12.62 | 119.34 | 0.2451 | 1136.0 | 924.3 | |
| 0.00 | 2.19 | 0.00 | 1.12 | -13.07 | 76.81 | -12.64 | 118.53 | 0.2438 | 1133.0 | 948.3 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -11.80 | 76.62 | -12.83 | 113.38 | 0.2379 | 988.0 | 772.3 | |
| 0.00 | 2.37 | 0.00 | 1.21 | -11.34 | 76.46 | -12.99 | 111.34 | 0.2378 | 627.0 | 614.8 | |
| 8.86 | 252.62 | 4.53 | 129.50 | -12.33 | 76.19 | -13.26 | 114.75 | 0.2480 | 1458.0 | 354.7 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -11.39 | 76.21 | -13.25 | 111.20 | 0.2421 | 750.0 | 632.2 | |
| 24.82 | -7.00 | 12.70 | -7.00 | -12.59 | 76.08 | -13.37 | 115.58 | 0.2514 | 1354.5 | 999999 | |
| 9.82 | -7.00 | 5.03 | -7.00 | -13.07 | 75.96 | -13.49 | 117.12 | 0.2565 | 1086.8 | 999999 | |
| 3.86 | -7.00 | 1.98 | -7.00 | -12.92 | 75.81 | -13.64 | 116.33 | 0.2577 | 853.8 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -14.60 | 75.42 | -14.03 | 121.37 | 0.2761 | 672.0 | 533.8 | |
| 0.00 | 2.19 | 0.00 | 1.13 | -14.15 | 75.45 | -14.00 | 119.95 | 0.2720 | 761.0 | 617.6 | |
| 1.14 | -7.00 | 0.59 | -7.00 | -13.06 | 75.48 | -13.97 | 116.34 | 0.2636 | 556.5 | 999999 | |
| 2.19 | -7.00 | 1.13 | -7.00 | -12.53 | 74.85 | -14.60 | 113.60 | 0.2698 | 875.6 | 999999 | |
| 5.70 | -7.00 | 2.93 | -7.00 | -12.77 | 74.80 | -14.65 | 114.36 | 0.2720 | 958.0 | 999999 | |
| 0.00 | 5.44 | 0.00 | 2.80 | -12.07 | 74.72 | -14.73 | 111.84 | 0.2691 | 601.0 | 643.4 | |
| 0.70 | -7.00 | 0.36 | -7.00 | -13.36 | 74.39 | -15.07 | 115.78 | 0.2821 | -720.6 | 999999 | |
| 0.00 | 3.24 | 0.00 | 1.68 | -12.94 | 73.58 | -15.87 | 113.40 | 0.2917 | -612.0 | -381.0 | |
| 0.00 | 3.07 | 0.00 | 1.59 | -14.45 | 73.44 | -16.01 | 117.91 | 0.3036 | 866.0 | 565.3 | |
| 0.00 | 3.16 | 0.00 | 1.63 | -12.04 | 73.55 | -15.91 | 110.39 | 0.2873 | -950.0 | -649.8 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -15.87 | 73.23 | -16.22 | 121.71 | 0.3172 | -818.0 | -695.5 | |
| 0.00 | 1.93 | 0.00 | 1.00 | -13.63 | 73.38 | -16.08 | 115.32 | 0.2991 | 362.0 | 219.2 | |
| 0.00 | 2.28 | 0.00 | 1.19 | -15.62 | 73.19 | -16.26 | 120.96 | 0.3159 | -932.0 | -709.1 | |
| 0.00 | 1.75 | 0.00 | 0.91 | -13.45 | 73.33 | -16.13 | 114.69 | 0.2987 | -566.0 | -470.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -11.40 | 73.39 | -16.06 | 108.11 | 0.2866 | -988.0 | -882.4 | |
| 0.00 | 1.49 | 0.00 | 0.77 | -11.52 | 73.23 | -16.23 | 108.34 | 0.2897 | -822.0 | -682.6 | |
| 2.72 | 28.06 | 1.41 | 14.58 | -13.44 | 72.97 | -16.48 | 114.23 | 0.3039 | -691.3 | -753.9 | |
| 0.00 | 3.86 | 0.00 | 2.02 | -15.66 | 72.44 | -17.01 | 120.03 | 0.3269 | -687.0 | -636.2 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -13.12 | 72.58 | -16.88 | 112.82 | 0.3081 | 564.0 | 295.6 | |
| 0.96 | -28.00 | 0.50 | -28.00 | -13.33 | 72.53 | -16.92 | 113.41 | 0.3100 | -1019.8 | 999999 | |
| 5.35 | 259.20 | 2.80 | 135.97 | -14.01 | 72.16 | -17.30 | 115.02 | 0.3198 | -1106.0 | -427.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -12.75 | 72.25 | -17.20 | 111.34 | 0.3111 | 555.0 | 424.9 | |
| 0.00 | 2.54 | 0.00 | 1.33 | -12.77 | 71.90 | -17.56 | 111.05 | 0.3166 | -806.0 | -566.2 | |
| 0.44 | 4.30 | 0.23 | 2.25 | -13.19 | 71.80 | -17.65 | 112.20 | 0.3203 | -1058.6 | -749.0 | |
| 1.32 | 2.19 | 0.69 | 1.15 | -12.85 | 71.60 | -17.85 | 111.00 | 0.3216 | -993.1 | -843.8 | |
| 35.51 | -32.00 | 18.64 | -32.00 | -14.05 | 71.34 | -18.11 | 114.22 | 0.3321 | -1219.3 | 999999 | |
| 5.87 | 17.19 | 3.07 | 8.98 | -12.12 | 71.46 | -17.99 | 108.70 | 0.3203 | -1100.6 | -829.2 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -12.81 | 71.28 | -18.17 | 110.59 | 0.3263 | -747.0 | -619.2 | |
| 6.84 | -32.00 | 3.60 | -32.00 | -13.67 | 70.92 | -18.53 | 112.73 | 0.3364 | -1066.3 | 999999 | |
| 7.80 | -32.00 | 4.11 | -32.00 | -13.81 | 70.61 | -18.84 | 112.83 | 0.3417 | -716.3 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -12.84 | 70.50 | -18.95 | 110.00 | 0.3385 | -854.0 | -694.1 | |
| 0.96 | 2.37 | 0.51 | 1.25 | -13.04 | 70.39 | -19.07 | 110.49 | 0.3413 | -954.2 | -769.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -13.31 | 70.30 | -19.16 | 111.17 | 0.3439 | -727.0 | -566.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
