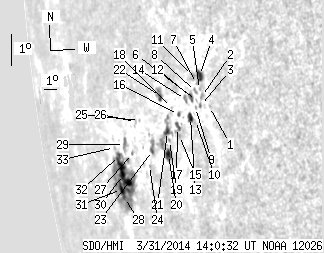

SDO HMI 2014-03-31 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.42 | 179.59 | 67.08 | 280.90 | -11.42 | 17.08 | -72.38 | 99.89 | 0.9485 | -22.5 | -71.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.73 | -10.63 | 23.52 | -65.93 | 98.70 | 0.9096 | 534.0 | 501.0 | |
| 0.00 | 2.37 | 0.00 | 2.84 | -10.27 | 23.06 | -66.39 | 98.34 | 0.9130 | 595.0 | 539.1 | |
| 0.00 | 1.67 | 0.00 | 2.02 | -10.53 | 22.88 | -66.58 | 98.63 | 0.9142 | 440.0 | 421.2 | |
| 4.12 | 6.23 | 4.94 | 7.46 | -9.65 | 23.17 | -66.29 | 97.64 | 0.9125 | 539.0 | 357.3 | |
| 0.00 | 0.79 | 0.00 | 0.95 | -10.05 | 23.00 | -66.45 | 98.10 | 0.9135 | 592.0 | 564.4 | |
| 0.00 | 0.53 | 0.00 | 0.64 | -10.35 | 22.64 | -66.81 | 98.44 | 0.9159 | 388.0 | 342.8 | |
| 0.00 | 0.61 | 0.00 | 0.74 | -9.86 | 22.85 | -66.60 | 97.89 | 0.9146 | 260.0 | 324.6 | |
| 0.00 | 1.84 | 0.00 | 2.25 | -10.08 | 22.68 | -66.77 | 98.15 | 0.9157 | 464.0 | 351.2 | |
| 0.00 | 0.70 | 0.00 | 0.86 | -10.55 | 22.48 | -66.97 | 98.67 | 0.9169 | 482.0 | 377.4 | |
| 0.00 | 0.88 | 0.00 | 1.08 | -10.93 | 22.31 | -67.15 | 99.09 | 0.9180 | 306.0 | 290.0 | |
| 0.00 | 1.40 | 0.00 | 1.71 | -9.59 | 22.65 | -66.81 | 97.61 | 0.9161 | -340.0 | -306.1 | |
| 1.67 | 3.68 | 2.07 | 4.57 | -10.23 | 22.30 | -67.15 | 98.32 | 0.9182 | 416.5 | 286.6 | |
| 3.16 | 4.82 | 3.96 | 6.05 | -10.80 | 21.97 | -67.49 | 98.96 | 0.9203 | 387.4 | 291.8 | |
| 0.00 | 2.81 | 0.00 | 3.54 | -10.24 | 21.82 | -67.63 | 98.36 | 0.9215 | 265.0 | 146.8 | |
| 0.00 | 1.23 | 0.00 | 1.61 | -11.23 | 20.84 | -68.61 | 99.48 | 0.9276 | 206.0 | 208.1 | |
| 0.53 | 1.49 | 0.68 | 1.94 | -10.61 | 21.07 | -68.39 | 98.81 | 0.9263 | 194.5 | 133.7 | |
| 0.00 | 4.65 | 0.00 | 6.11 | -10.98 | 20.80 | -68.65 | 99.22 | 0.9279 | 474.0 | 378.9 | |
| 0.00 | 0.70 | 0.00 | 0.93 | -10.35 | 20.60 | -68.85 | 98.55 | 0.9294 | 156.0 | 100.4 | |
| 0.00 | 1.05 | 0.00 | 1.43 | -11.29 | 19.95 | -69.51 | 99.59 | 0.9332 | 327.0 | 272.8 | |
| 4.65 | 24.99 | 6.42 | 34.49 | -11.68 | 19.64 | -69.82 | 100.03 | 0.9350 | 297.3 | -202.1 | |
| 2.98 | -20.00 | 4.07 | -20.00 | -11.01 | 19.92 | -69.53 | 99.29 | 0.9334 | -383.9 | 999999 | |
| 2.10 | 7.28 | 2.90 | 10.04 | -9.93 | 19.84 | -69.61 | 98.14 | 0.9343 | 122.6 | -115.1 | |
| 1.40 | 6.49 | 2.06 | 9.51 | -11.42 | 18.31 | -71.15 | 99.81 | 0.9429 | -387.8 | -421.7 | |
| 0.00 | 1.05 | 0.00 | 1.58 | -11.82 | 17.76 | -71.69 | 100.27 | 0.9458 | 252.0 | 171.3 | |
| 0.00 | 0.88 | 0.00 | 1.33 | -10.43 | 17.62 | -71.83 | 98.80 | 0.9470 | -245.0 | -206.2 | |
| 0.00 | 1.75 | 0.00 | 2.72 | -10.41 | 17.23 | -72.23 | 98.82 | 0.9492 | -184.0 | -129.4 | |
| 0.00 | 1.14 | 0.00 | 1.85 | -11.30 | 16.36 | -73.09 | 99.80 | 0.9535 | -425.0 | -449.8 | |
| 1.32 | 91.46 | 2.34 | 160.91 | -12.46 | 14.59 | -74.86 | 101.11 | 0.9618 | -336.8 | -99.3 | |
| 0.00 | 5.44 | 0.00 | 9.13 | -10.95 | 15.72 | -73.73 | 99.48 | 0.9568 | -496.0 | -473.3 | |
| 16.05 | -28.00 | 27.93 | -28.00 | -11.79 | 15.00 | -74.45 | 100.40 | 0.9601 | -390.2 | 999999 | |
| 4.12 | -28.00 | 7.41 | -28.00 | -12.19 | 14.45 | -75.01 | 100.85 | 0.9626 | 123.9 | 999999 | |
| 1.32 | -28.00 | 2.30 | -28.00 | -11.21 | 14.97 | -74.48 | 99.79 | 0.9604 | -267.7 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.88 | -10.92 | 14.60 | -74.86 | 99.52 | 0.9623 | 253.0 | 195.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
