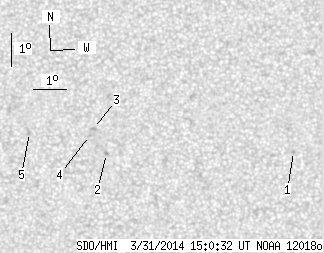

SDO HMI 2014-03-31 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.19 | 0.00 | 3.58 | -11.94 | 85.16 | -3.75 | 147.89 | 0.1211 | 905.8 | 735.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.52 | -12.33 | 90.68 | 1.78 | 196.78 | 0.1055 | 830.0 | 675.2 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -12.38 | 84.95 | -3.95 | 146.42 | 0.1224 | 1020.0 | 798.3 | |
| 0.00 | 2.19 | 0.00 | 1.09 | -11.62 | 84.56 | -4.34 | 140.02 | 0.1159 | 965.0 | 751.1 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -11.83 | 84.44 | -4.47 | 140.37 | 0.1201 | 860.0 | 695.7 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.72 | 82.60 | -6.31 | 130.06 | 0.1412 | 854.0 | 715.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
