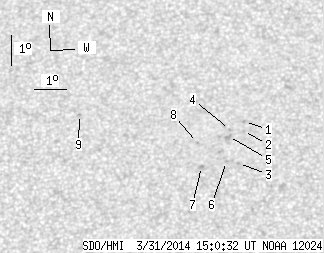

SDO HMI 2014-03-31 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.93 | 0.00 | 6.48 | 17.51 | 90.20 | 1.30 | 356.95 | 0.4108 | -615.8 | -608.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.62 | 18.24 | 91.15 | 2.25 | 354.93 | 0.4228 | -700.0 | -530.5 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 17.91 | 91.11 | 2.21 | 354.93 | 0.4176 | -702.0 | -624.5 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 16.86 | 90.94 | 2.04 | 355.10 | 0.4006 | -820.0 | -664.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 17.97 | 90.67 | 1.77 | 355.95 | 0.4180 | -686.0 | -608.6 | |
| 0.00 | 2.81 | 0.00 | 1.53 | 17.74 | 90.64 | 1.74 | 355.99 | 0.4143 | -859.0 | -773.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 16.92 | 90.57 | 1.67 | 356.01 | 0.4012 | -849.0 | -745.2 | |
| 0.00 | 2.10 | 0.00 | 1.14 | 16.76 | 89.79 | 0.88 | 357.87 | 0.3979 | -931.0 | -768.0 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 17.54 | 89.66 | 0.76 | 358.22 | 0.4104 | -713.0 | -586.0 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 18.48 | 85.94 | -2.96 | 6.60 | 0.4278 | 718.0 | 538.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
