SDO HMI 2014-03-31 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.46 | 26.83 | 5.55 | 15.62 | -24.02 | 116.45 | 27.54 | 233.50 | 0.5273 | 121.3 | 4.3 | |
|
previous
or next observation for the same group /

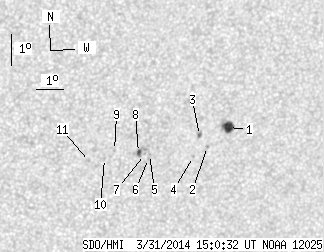

back to the solar disc SDO HMI 2014-03-31 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.45 | 13.06 | 4.38 | 7.67 | -23.57 | 117.78 | 28.87 | 235.38 | 0.5399 | 876.2 | 585.3 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -24.21 | 117.14 | 28.24 | 233.84 | 0.5367 | 711.0 | 573.4 | |
| 0.61 | 2.02 | 0.36 | 1.18 | -23.88 | 116.77 | 27.86 | 234.07 | 0.5299 | 750.9 | 666.7 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -24.54 | 116.70 | 27.80 | 232.92 | 0.5339 | 651.0 | 552.1 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -24.56 | 115.08 | 26.18 | 231.46 | 0.5150 | -699.0 | -573.4 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -24.69 | 115.07 | 26.17 | 231.24 | 0.5159 | -380.0 | -448.2 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -24.57 | 114.90 | 25.99 | 231.28 | 0.5129 | -630.0 | -541.2 | |
| 1.40 | 4.91 | 0.81 | 2.82 | -24.52 | 114.67 | 25.76 | 231.15 | 0.5098 | -1000.7 | -790.0 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -24.49 | 113.79 | 24.88 | 230.34 | 0.4994 | -717.0 | -556.4 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -24.76 | 113.48 | 24.58 | 229.58 | 0.4981 | -586.0 | -504.8 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -24.88 | 112.96 | 24.06 | 228.85 | 0.4931 | -634.0 | -566.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
