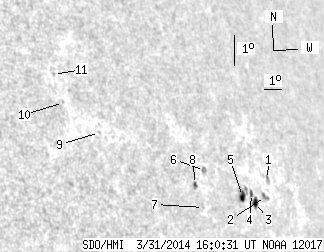

SDO HMI 2014-03-31 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.55 | 35.25 | 10.02 | 36.41 | 10.01 | 147.60 | 59.25 | 285.26 | 0.8784 | -247.7 | -184.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.81 | 0.00 | 3.13 | 10.46 | 149.90 | 61.54 | 285.14 | 0.8975 | -334.0 | -191.3 | |
| 0.00 | 3.86 | 0.00 | 4.23 | 9.90 | 149.58 | 61.23 | 284.60 | 0.8942 | -454.0 | -360.3 | |
| 3.59 | 5.44 | 3.85 | 5.81 | 9.64 | 148.87 | 60.52 | 284.49 | 0.8883 | -423.9 | -325.0 | |
| 1.14 | 2.45 | 1.21 | 2.62 | 9.90 | 148.70 | 60.35 | 284.82 | 0.8875 | -420.9 | -298.8 | |
| 3.86 | 11.13 | 4.03 | 11.66 | 9.75 | 148.10 | 59.75 | 284.80 | 0.8825 | -778.1 | -514.8 | |
| 0.00 | 3.33 | 0.00 | 3.29 | 10.35 | 146.04 | 57.68 | 286.01 | 0.8669 | 603.0 | 355.4 | |
| 0.00 | 0.88 | 0.00 | 0.85 | 9.16 | 145.65 | 57.30 | 284.78 | 0.8613 | -450.0 | -363.3 | |
| 0.96 | 2.54 | 0.93 | 2.45 | 9.85 | 145.38 | 57.03 | 285.63 | 0.8604 | 476.5 | 341.1 | |
| 0.00 | 0.79 | 0.00 | 0.68 | 11.01 | 140.60 | 52.25 | 288.42 | 0.8202 | 389.0 | 355.3 | |
| 0.00 | 0.79 | 0.00 | 0.66 | 11.80 | 139.03 | 50.68 | 289.90 | 0.8076 | 560.0 | 459.2 | |
| 0.00 | 1.23 | 0.00 | 1.03 | 12.66 | 138.78 | 50.43 | 291.01 | 0.8078 | 305.0 | 313.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
