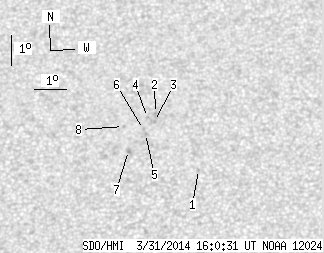

SDO HMI 2014-03-31 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.81 | 0.00 | 5.31 | 17.25 | 90.45 | 2.10 | 355.04 | 0.4070 | -789.9 | -687.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.66 | 16.15 | 92.01 | 3.66 | 350.98 | 0.3924 | -864.0 | -659.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 17.97 | 90.69 | 2.34 | 354.66 | 0.4188 | -718.0 | -614.5 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 17.71 | 90.66 | 2.30 | 354.68 | 0.4146 | -907.0 | -769.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 17.84 | 90.44 | 2.08 | 355.21 | 0.4163 | -695.0 | -605.0 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 17.31 | 90.37 | 2.02 | 355.26 | 0.4079 | -779.0 | -735.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 17.44 | 90.31 | 1.95 | 355.43 | 0.4099 | -727.0 | -626.8 | |
| 0.00 | 2.28 | 0.00 | 1.23 | 16.76 | 89.83 | 1.48 | 356.43 | 0.3983 | -879.0 | -776.0 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 17.54 | 89.68 | 1.33 | 356.91 | 0.4108 | -750.0 | -596.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
