SDO HMI 2014-03-31 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.80 | 0.00 | 10.54 | -25.11 | 89.23 | 1.43 | 187.03 | 0.3660 | 165.0 | 76.0 | |
|
previous
or next observation for the same group /

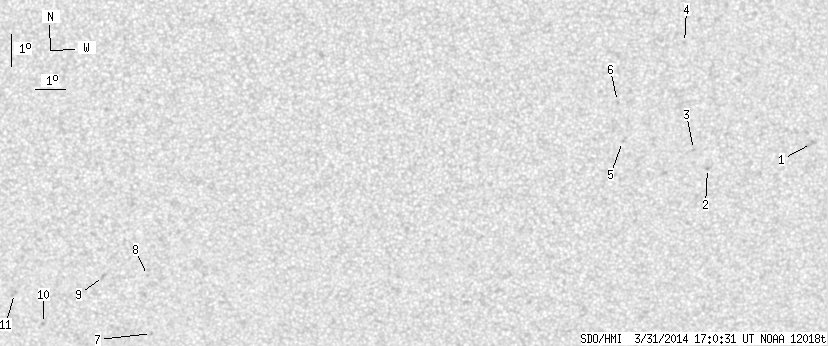

back to the solar disc SDO HMI 2014-03-31 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.47 | 0.00 | 2.38 | -23.11 | 101.93 | 14.13 | 217.94 | 0.3666 | 741.0 | 645.0 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -23.97 | 98.53 | 10.73 | 209.48 | 0.3472 | 807.0 | 658.3 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -23.38 | 98.02 | 10.22 | 209.23 | 0.3349 | 815.0 | 655.4 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -20.07 | 97.49 | 9.69 | 213.94 | 0.2845 | 789.0 | 595.5 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -23.17 | 95.66 | 7.86 | 203.67 | 0.3144 | 744.0 | 568.9 | |
| 0.00 | 1.49 | 0.00 | 0.77 | -21.93 | 95.43 | 7.63 | 204.85 | 0.2942 | 596.0 | 436.0 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -29.26 | 79.86 | -7.94 | 162.69 | 0.4069 | -809.0 | -653.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -27.39 | 79.87 | -7.94 | 161.02 | 0.3786 | 719.0 | 625.6 | |
| 0.00 | 2.98 | 0.00 | 1.60 | -27.40 | 78.36 | -9.44 | 157.81 | 0.3872 | -835.0 | -633.4 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -28.87 | 76.14 | -11.66 | 155.11 | 0.4223 | -1008.0 | -811.9 | |
| 0.00 | 2.45 | 0.00 | 1.34 | -27.88 | 75.25 | -12.55 | 152.29 | 0.4149 | -744.0 | -700.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
