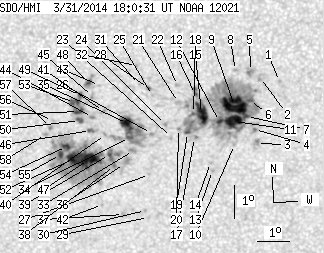

SDO HMI 2014-03-31 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.92 | 664.65 | 72.79 | 341.09 | -13.19 | 73.63 | -13.62 | 117.61 | 0.2593 | -50.2 | -56.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.71 | -11.85 | 77.63 | -9.62 | 119.78 | 0.1892 | 994.0 | 806.8 | |
| 0.00 | 3.94 | 0.00 | 1.99 | -11.71 | 77.05 | -10.20 | 117.80 | 0.1969 | 618.0 | 755.3 | |
| 0.00 | 5.00 | 0.00 | 2.54 | -13.70 | 76.84 | -10.41 | 125.65 | 0.2170 | 778.0 | 797.5 | |
| 0.35 | 5.70 | 0.18 | 2.89 | -13.27 | 76.80 | -10.45 | 123.89 | 0.2137 | 1004.2 | 803.1 | |
| 0.00 | 6.40 | 0.00 | 3.23 | -11.53 | 76.75 | -10.50 | 116.30 | 0.2002 | 1080.0 | 874.5 | |
| 1.84 | 272.46 | 0.93 | 138.41 | -12.40 | 76.68 | -10.57 | 120.00 | 0.2078 | 994.3 | 452.7 | |
| 0.79 | -6.00 | 0.40 | -6.00 | -12.88 | 76.56 | -10.68 | 121.74 | 0.2135 | 1027.7 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.11 | -11.49 | 76.28 | -10.97 | 115.20 | 0.2070 | 802.0 | 595.1 | |
| 29.19 | -6.00 | 14.81 | -6.00 | -12.54 | 76.20 | -11.04 | 119.56 | 0.2160 | 1511.8 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.89 | -13.71 | 76.15 | -11.10 | 124.06 | 0.2268 | 700.0 | 393.3 | |
| 14.64 | -6.00 | 7.43 | -6.00 | -13.02 | 76.15 | -11.10 | 121.38 | 0.2207 | 1189.6 | 999999 | |
| 2.19 | -6.00 | 1.11 | -6.00 | -13.01 | 75.71 | -11.54 | 120.42 | 0.2270 | 879.4 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -14.48 | 75.42 | -11.83 | 125.19 | 0.2440 | 900.0 | 747.0 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -14.24 | 75.37 | -11.88 | 124.23 | 0.2425 | 726.0 | 643.2 | |
| 17.36 | -6.00 | 8.84 | -6.00 | -12.75 | 75.16 | -12.09 | 118.35 | 0.2331 | 1087.0 | 999999 | |
| 0.96 | -6.00 | 0.49 | -6.00 | -12.18 | 75.00 | -12.25 | 115.81 | 0.2314 | 806.5 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.34 | -13.47 | 74.90 | -12.35 | 120.55 | 0.2425 | 628.0 | 351.0 | |
| 0.79 | -6.00 | 0.40 | -6.00 | -12.75 | 74.91 | -12.34 | 117.87 | 0.2368 | 500.2 | 999999 | |
| 1.49 | -6.00 | 0.76 | -6.00 | -13.31 | 74.69 | -12.56 | 119.59 | 0.2444 | -703.6 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -13.19 | 74.41 | -12.83 | 118.62 | 0.2475 | 404.0 | 374.5 | |
| 0.00 | 2.81 | 0.00 | 1.43 | -12.40 | 74.46 | -12.79 | 115.78 | 0.2413 | 126.0 | 72.3 | |
| 0.00 | 1.75 | 0.00 | 0.89 | -11.89 | 74.45 | -12.80 | 113.79 | 0.2380 | 697.0 | 423.0 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -13.45 | 74.18 | -13.07 | 119.16 | 0.2530 | 325.0 | 263.6 | |
| 0.00 | 1.84 | 0.00 | 0.94 | -13.06 | 74.01 | -13.24 | 117.46 | 0.2525 | -984.0 | -623.0 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -12.17 | 73.65 | -13.60 | 113.67 | 0.2521 | 332.0 | 212.4 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -13.31 | 73.55 | -13.70 | 117.63 | 0.2612 | -1056.0 | -817.1 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -14.55 | 73.41 | -13.84 | 121.54 | 0.2728 | 617.0 | 472.9 | |
| 0.79 | 1.58 | 0.40 | 0.81 | -11.96 | 73.54 | -13.71 | 112.72 | 0.2526 | -756.8 | -538.6 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -15.85 | 73.29 | -13.96 | 125.34 | 0.2857 | -887.0 | -630.5 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -15.63 | 73.21 | -14.04 | 124.55 | 0.2849 | -960.0 | -765.1 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -11.83 | 73.26 | -13.99 | 111.88 | 0.2561 | -736.0 | -537.7 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -11.26 | 73.19 | -14.06 | 109.66 | 0.2541 | -994.0 | -771.8 | |
| 0.00 | 3.51 | 0.00 | 1.81 | -13.81 | 72.95 | -14.30 | 118.37 | 0.2738 | -1061.0 | -746.7 | |
| 2.02 | 56.10 | 1.04 | 28.86 | -13.42 | 72.85 | -14.40 | 116.90 | 0.2725 | -906.6 | -527.2 | |
| 9.99 | -34.00 | 5.14 | -34.00 | -12.99 | 72.81 | -14.44 | 115.41 | 0.2701 | -1256.1 | 999999 | |
| 0.00 | 9.20 | 0.00 | 4.75 | -14.19 | 72.64 | -14.61 | 119.13 | 0.2812 | -450.0 | -260.3 | |
| 0.00 | 2.10 | 0.00 | 1.09 | -15.74 | 72.50 | -14.75 | 123.62 | 0.2956 | -933.0 | -812.7 | |
| 0.61 | 213.81 | 0.32 | 111.01 | -14.25 | 72.32 | -14.93 | 118.80 | 0.2863 | -768.9 | -452.2 | |
| 1.40 | -38.00 | 0.72 | -38.00 | -13.91 | 72.18 | -15.07 | 117.54 | 0.2859 | -1321.8 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -13.30 | 72.09 | -15.16 | 115.46 | 0.2831 | -879.0 | -654.5 | |
| 0.00 | 2.28 | 0.00 | 1.18 | -12.61 | 72.07 | -15.18 | 113.13 | 0.2790 | -988.0 | -718.2 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -15.41 | 71.85 | -15.40 | 121.63 | 0.3021 | -729.0 | -602.6 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -11.82 | 71.99 | -15.25 | 110.35 | 0.2759 | -217.0 | -193.7 | |
| 0.00 | 2.37 | 0.00 | 1.22 | -12.78 | 71.71 | -15.54 | 113.25 | 0.2856 | -1180.0 | -884.8 | |
| 0.00 | 2.19 | 0.00 | 1.13 | -12.15 | 71.75 | -15.50 | 111.19 | 0.2814 | -1032.0 | -821.6 | |
| 1.23 | 4.30 | 0.63 | 2.22 | -13.17 | 71.62 | -15.63 | 114.41 | 0.2893 | -1167.1 | -836.9 | |
| 21.04 | -38.00 | 10.91 | -38.00 | -14.04 | 71.50 | -15.75 | 117.00 | 0.2969 | -1352.7 | 999999 | |
| 1.67 | 9.29 | 0.86 | 4.79 | -11.72 | 71.65 | -15.60 | 109.64 | 0.2808 | -1181.6 | -706.8 | |
| 1.67 | 27.61 | 0.86 | 14.29 | -12.10 | 71.37 | -15.88 | 110.64 | 0.2871 | -1058.4 | -878.1 | |
| 2.28 | -49.00 | 1.18 | -49.00 | -12.86 | 71.29 | -15.96 | 113.00 | 0.2925 | -1169.0 | 999999 | |
| 3.94 | -49.00 | 2.04 | -49.00 | -12.58 | 71.28 | -15.97 | 112.11 | 0.2911 | -1299.8 | 999999 | |
| 13.94 | -38.00 | 7.24 | -38.00 | -13.99 | 71.05 | -16.20 | 116.28 | 0.3032 | -1173.5 | 999999 | |
| 4.38 | -49.00 | 2.27 | -49.00 | -12.31 | 71.17 | -16.08 | 111.09 | 0.2913 | -1045.3 | 999999 | |
| 4.12 | -38.00 | 2.14 | -38.00 | -13.62 | 70.82 | -16.43 | 114.87 | 0.3043 | -1054.2 | 999999 | |
| 3.24 | -38.00 | 1.69 | -38.00 | -13.86 | 70.61 | -16.64 | 115.33 | 0.3089 | -913.6 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -12.83 | 70.43 | -16.82 | 111.96 | 0.3056 | -694.0 | -574.6 | |
| 0.00 | 2.19 | 0.00 | 1.14 | -13.04 | 70.35 | -16.90 | 112.52 | 0.3079 | -1011.0 | -806.2 | |
| 0.00 | 1.93 | 0.00 | 1.01 | -13.24 | 70.18 | -17.07 | 112.96 | 0.3118 | -729.0 | -593.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
