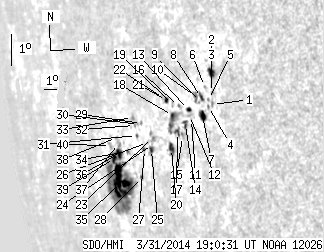

SDO HMI 2014-03-31 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.46 | 211.45 | 81.86 | 292.76 | -11.41 | 16.92 | -69.77 | 99.74 | 0.9337 | -143.7 | -72.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 1.52 | -10.54 | 23.13 | -63.56 | 98.50 | 0.8920 | 568.0 | 518.1 | |
| 3.86 | 6.22 | 4.16 | 6.71 | -9.59 | 23.41 | -63.29 | 97.43 | 0.8902 | 643.7 | 419.3 | |
| 0.00 | 0.53 | 0.00 | 0.57 | -10.18 | 23.20 | -63.50 | 98.10 | 0.8916 | 642.0 | 614.5 | |
| 0.00 | 1.23 | 0.00 | 1.35 | -10.57 | 22.84 | -63.85 | 98.55 | 0.8942 | 418.0 | 390.3 | |
| 0.00 | 0.79 | 0.00 | 0.86 | -10.37 | 22.92 | -63.77 | 98.32 | 0.8937 | 447.0 | 468.6 | |
| 0.00 | 0.88 | 0.00 | 0.96 | -9.96 | 22.79 | -63.90 | 97.87 | 0.8948 | 219.0 | 205.5 | |
| 4.65 | 6.22 | 5.19 | 6.95 | -10.79 | 22.33 | -64.36 | 98.82 | 0.8981 | 469.7 | 380.3 | |
| 1.49 | 3.24 | 1.66 | 3.61 | -10.26 | 22.47 | -64.23 | 98.22 | 0.8972 | 531.2 | 414.0 | |
| 0.00 | 1.14 | 0.00 | 1.27 | -10.37 | 22.36 | -64.34 | 98.34 | 0.8980 | 445.0 | 468.5 | |
| 0.00 | 4.47 | 0.00 | 5.05 | -10.19 | 22.07 | -64.63 | 98.15 | 0.9002 | 266.0 | 168.6 | |
| 0.00 | 0.61 | 0.00 | 0.71 | -10.83 | 21.52 | -65.18 | 98.89 | 0.9041 | 346.0 | 303.7 | |
| 0.00 | 1.49 | 0.00 | 1.72 | -10.70 | 21.43 | -65.27 | 98.75 | 0.9048 | -371.0 | -241.6 | |
| 1.58 | 2.54 | 1.82 | 2.93 | -10.52 | 21.43 | -65.27 | 98.55 | 0.9048 | 198.2 | 29.0 | |
| 1.58 | 3.68 | 1.85 | 4.31 | -10.93 | 21.03 | -65.66 | 99.03 | 0.9076 | 562.4 | 462.0 | |
| 0.00 | 2.28 | 0.00 | 2.70 | -11.26 | 20.66 | -66.04 | 99.40 | 0.9102 | 362.0 | 355.0 | |
| 0.00 | 0.70 | 0.00 | 0.83 | -10.35 | 20.75 | -65.94 | 98.40 | 0.9098 | 236.0 | 137.9 | |
| 1.58 | 17.45 | 1.89 | 21.02 | -11.10 | 20.35 | -66.35 | 99.24 | 0.9124 | 383.2 | -165.9 | |
| 1.49 | -17.00 | 1.80 | -17.00 | -10.57 | 20.20 | -66.50 | 98.67 | 0.9136 | -174.9 | 999999 | |
| 0.00 | 2.02 | 0.00 | 2.42 | -10.25 | 20.34 | -66.36 | 98.31 | 0.9128 | 275.0 | 148.2 | |
| 3.42 | 7.45 | 4.20 | 9.17 | -11.52 | 19.68 | -67.01 | 99.73 | 0.9169 | 383.4 | 192.9 | |
| 1.31 | 2.72 | 1.60 | 3.31 | -10.09 | 19.94 | -66.75 | 98.15 | 0.9156 | 94.5 | 6.1 | |
| 0.00 | 2.72 | 0.00 | 3.34 | -10.00 | 19.74 | -66.95 | 98.07 | 0.9170 | -187.0 | -105.8 | |
| 0.00 | 4.38 | 0.00 | 5.68 | -11.05 | 18.37 | -68.33 | 99.27 | 0.9258 | -559.0 | -393.4 | |
| 0.00 | 0.53 | 0.00 | 0.69 | -11.25 | 18.27 | -68.43 | 99.50 | 0.9264 | -541.0 | -511.7 | |
| 1.67 | 3.77 | 2.18 | 4.94 | -11.39 | 18.11 | -68.58 | 99.65 | 0.9274 | -333.2 | -165.2 | |
| 0.00 | 0.79 | 0.00 | 1.04 | -11.15 | 17.90 | -68.80 | 99.41 | 0.9288 | -331.0 | -310.1 | |
| 0.44 | 1.49 | 0.59 | 2.00 | -11.33 | 17.54 | -69.15 | 99.61 | 0.9310 | 76.4 | 19.0 | |
| 0.70 | 1.49 | 0.97 | 2.06 | -12.11 | 16.84 | -69.86 | 100.48 | 0.9351 | 192.5 | 106.7 | |
| 0.00 | 1.40 | 0.00 | 1.87 | -10.55 | 17.68 | -69.01 | 98.77 | 0.9303 | -285.0 | -258.8 | |
| 0.00 | 2.54 | 0.00 | 3.44 | -10.55 | 17.42 | -69.27 | 98.79 | 0.9320 | -203.0 | -257.0 | |
| 0.00 | 1.40 | 0.00 | 1.92 | -10.85 | 17.09 | -69.60 | 99.13 | 0.9339 | -411.0 | -376.9 | |
| 0.00 | 0.88 | 0.00 | 1.20 | -10.54 | 17.07 | -69.62 | 98.80 | 0.9341 | -202.0 | -227.8 | |
| 0.00 | 1.84 | 0.00 | 2.53 | -10.30 | 17.02 | -69.67 | 98.53 | 0.9345 | 160.0 | 100.9 | |
| 0.44 | 1.23 | 0.63 | 1.76 | -11.23 | 16.07 | -70.63 | 99.59 | 0.9399 | -552.0 | -507.0 | |
| 27.88 | 113.18 | 42.26 | 172.17 | -12.05 | 14.88 | -71.81 | 100.52 | 0.9464 | -469.5 | -119.8 | |
| 4.65 | -35.00 | 6.91 | -35.00 | -11.20 | 15.22 | -71.47 | 99.60 | 0.9448 | -605.8 | 999999 | |
| 0.00 | 3.33 | 0.00 | 4.93 | -10.91 | 15.39 | -71.30 | 99.29 | 0.9439 | -510.0 | -385.8 | |
| 0.00 | 0.88 | 0.00 | 1.31 | -10.72 | 15.31 | -71.39 | 99.09 | 0.9444 | -333.0 | -297.5 | |
| 2.72 | -35.00 | 4.15 | -35.00 | -11.30 | 14.76 | -71.93 | 99.73 | 0.9473 | -141.1 | 999999 | |
| 0.00 | 2.54 | 0.00 | 3.91 | -10.89 | 14.62 | -72.08 | 99.31 | 0.9482 | 224.0 | 177.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
