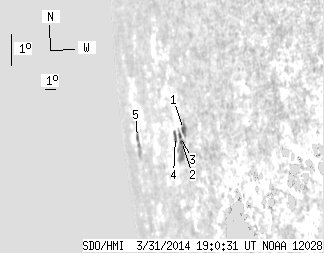

SDO HMI 2014-03-31 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.54 | 35.76 | 17.31 | 87.21 | -8.24 | 7.72 | -78.98 | 97.10 | 0.9781 | 274.8 | 105.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.37 | 6.22 | 4.55 | 11.94 | -8.37 | 10.87 | -75.83 | 96.95 | 0.9675 | 595.7 | 434.2 | |
| 1.05 | 16.83 | 2.08 | 33.80 | -8.69 | 10.42 | -76.28 | 97.31 | 0.9693 | 520.6 | 270.3 | |
| 1.14 | -2.00 | 2.27 | -2.00 | -8.53 | 10.39 | -76.31 | 97.16 | 0.9695 | 368.9 | 999999 | |
| 1.67 | 3.68 | 3.46 | 7.66 | -8.46 | 9.76 | -76.93 | 97.14 | 0.9721 | -11.6 | -83.7 | |
| 1.31 | 9.03 | 4.95 | 33.81 | -7.78 | 3.45 | -83.25 | 97.02 | 0.9919 | 33.7 | -120.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
