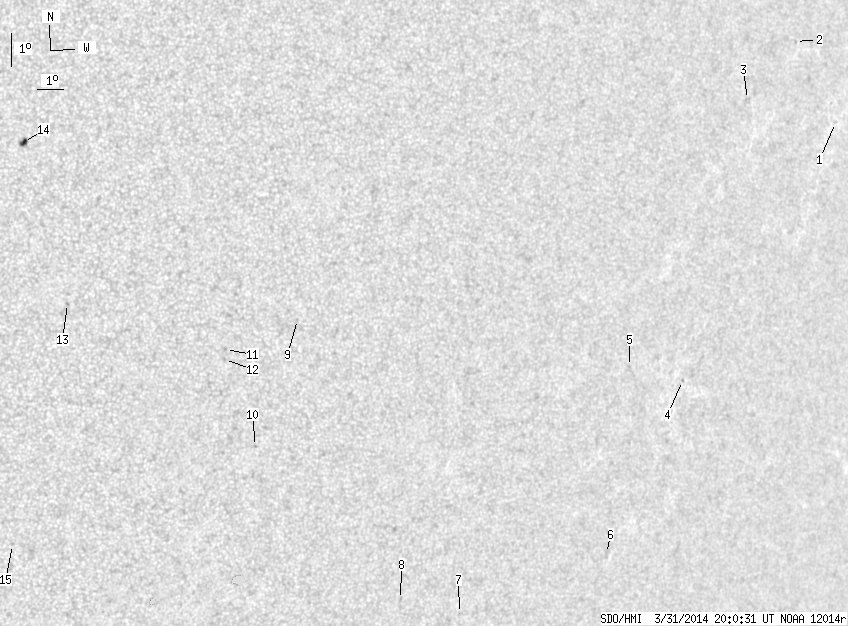

SDO HMI 2014-03-31 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.63 | 24.46 | 1.41 | 15.88 | -16.29 | 124.43 | 38.29 | 251.29 | 0.6225 | -109.7 | -1.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.79 | -7.95 | 139.48 | 53.34 | 264.99 | 0.7998 | 420.0 | 356.6 | |
| 0.00 | 0.96 | 0.00 | 0.75 | -5.71 | 137.16 | 51.02 | 267.98 | 0.7762 | 510.0 | 476.4 | |
| 0.00 | 1.67 | 0.00 | 1.25 | -7.63 | 135.16 | 49.02 | 265.60 | 0.7528 | 692.0 | 487.8 | |
| 0.00 | 0.96 | 0.00 | 0.71 | -16.25 | 134.19 | 48.05 | 254.01 | 0.7451 | 563.0 | 525.0 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -16.02 | 131.70 | 45.56 | 253.97 | 0.7163 | 633.0 | 521.1 | |
| 0.00 | 4.82 | 0.00 | 3.53 | -21.75 | 132.68 | 46.53 | 246.36 | 0.7382 | 22.0 | 83.3 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -24.08 | 126.98 | 40.84 | 241.35 | 0.6827 | 383.0 | 250.4 | |
| 0.00 | 1.49 | 0.00 | 0.97 | -23.81 | 124.37 | 38.23 | 240.61 | 0.6520 | 526.0 | 418.8 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -15.51 | 118.26 | 32.11 | 251.41 | 0.5425 | -527.0 | -438.7 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -19.45 | 117.47 | 31.32 | 244.04 | 0.5473 | -707.0 | -617.6 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -16.56 | 115.82 | 29.67 | 248.40 | 0.5124 | -767.0 | -638.2 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -16.87 | 115.83 | 29.69 | 247.83 | 0.5139 | -646.0 | -486.8 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -15.44 | 110.13 | 23.99 | 247.33 | 0.4265 | -887.0 | -688.1 | |
| 2.63 | 4.30 | 1.41 | 2.30 | -10.66 | 108.20 | 22.05 | 257.83 | 0.3791 | -982.8 | -771.2 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -22.90 | 109.35 | 23.21 | 231.41 | 0.4663 | -519.0 | -419.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
