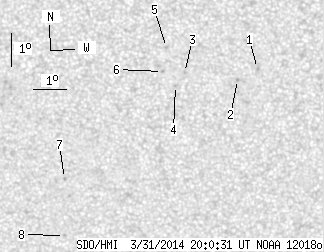

SDO HMI 2014-03-31 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.41 | 0.00 | 4.21 | -12.44 | 82.28 | -3.87 | 149.40 | 0.1241 | 427.1 | 319.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.70 | -11.25 | 85.20 | -0.94 | 168.80 | 0.0836 | 958.0 | 717.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -11.58 | 84.59 | -1.56 | 163.06 | 0.0918 | 833.0 | 698.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -11.36 | 82.97 | -3.18 | 147.02 | 0.1002 | 855.0 | 650.4 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -11.75 | 82.69 | -3.46 | 146.89 | 0.1085 | 807.0 | 707.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.61 | 82.43 | -3.72 | 137.96 | 0.0955 | 889.0 | 730.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -11.33 | 82.30 | -3.85 | 141.65 | 0.1065 | 884.0 | 776.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -14.51 | 79.20 | -6.95 | 139.90 | 0.1826 | -1008.0 | -799.5 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -16.24 | 79.14 | -7.01 | 145.25 | 0.2064 | -801.0 | -566.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
