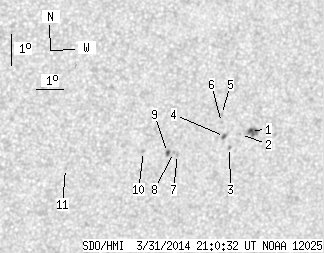

SDO HMI 2014-03-31 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.07 | 19.72 | 1.83 | 11.82 | -23.90 | 116.33 | 30.74 | 236.15 | 0.5646 | -114.7 | 128.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.23 | 6.84 | 0.74 | 4.15 | -23.56 | 117.73 | 32.13 | 237.70 | 0.5790 | 914.0 | 736.8 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -23.70 | 117.38 | 31.79 | 237.24 | 0.5757 | 681.0 | 526.4 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -24.13 | 117.07 | 31.48 | 236.36 | 0.5746 | 610.0 | 525.4 | |
| 0.79 | 2.54 | 0.47 | 1.53 | -23.80 | 116.79 | 31.20 | 236.70 | 0.5692 | 757.3 | 624.5 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -23.12 | 116.50 | 30.91 | 237.60 | 0.5617 | -565.0 | -469.3 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -23.37 | 116.56 | 30.97 | 237.23 | 0.5639 | -505.0 | -420.5 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -24.46 | 115.17 | 29.58 | 234.48 | 0.5542 | -671.0 | -579.1 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -24.40 | 115.01 | 29.41 | 234.45 | 0.5519 | -705.0 | -606.1 | |
| 1.05 | 2.45 | 0.62 | 1.45 | -24.41 | 114.78 | 29.19 | 234.25 | 0.5493 | -835.2 | -692.7 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -24.43 | 113.89 | 28.29 | 233.52 | 0.5388 | -732.0 | -587.7 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -25.10 | 111.15 | 25.56 | 229.99 | 0.5121 | -627.0 | -502.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
