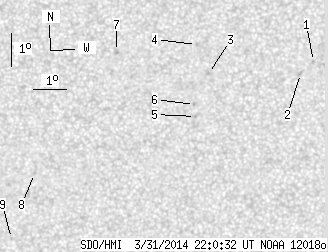

SDO HMI 2014-03-31 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.26 | 0.00 | 6.12 | -11.84 | 84.45 | -0.59 | 176.87 | 0.1032 | 467.2 | 446.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.52 | -10.95 | 88.46 | 3.42 | 217.40 | 0.0968 | 808.0 | 584.4 | |
| 0.00 | 2.10 | 0.00 | 1.05 | -11.31 | 88.07 | 3.03 | 212.00 | 0.0981 | 816.0 | 622.8 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -11.32 | 85.26 | 0.22 | 182.55 | 0.0832 | 937.0 | 705.8 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -10.45 | 84.89 | -0.15 | 177.83 | 0.0680 | 813.0 | 622.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.61 | 84.86 | -0.18 | 178.30 | 0.1058 | 877.0 | 649.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.25 | 84.83 | -0.21 | 177.89 | 0.0995 | 816.0 | 690.8 | |
| 0.00 | 2.54 | 0.00 | 1.26 | -10.65 | 82.45 | -2.59 | 148.08 | 0.0843 | 808.0 | 652.3 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -14.30 | 79.87 | -5.17 | 147.10 | 0.1614 | -894.0 | -697.8 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -16.26 | 79.10 | -5.94 | 149.53 | 0.1968 | -776.0 | -615.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
