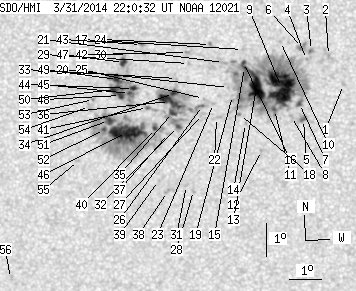

SDO HMI 2014-03-31 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 182.73 | 740.44 | 92.92 | 376.57 | -13.12 | 73.82 | -11.22 | 122.07 | 0.2237 | -28.2 | -48.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.75 | 0.00 | 0.88 | -12.71 | 78.18 | -6.86 | 132.75 | 0.1594 | 787.0 | 646.8 | |
| 0.00 | 7.02 | 0.00 | 3.52 | -11.83 | 77.74 | -7.30 | 126.66 | 0.1557 | 961.0 | 608.8 | |
| 0.00 | 2.63 | 0.00 | 1.32 | -11.67 | 77.22 | -7.82 | 124.02 | 0.1615 | 1036.0 | 890.7 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -11.94 | 77.06 | -7.98 | 124.86 | 0.1663 | 905.0 | 681.8 | |
| 1.40 | 4.47 | 0.71 | 2.25 | -13.74 | 76.91 | -8.13 | 132.51 | 0.1873 | 903.5 | 787.6 | |
| 0.00 | 6.14 | 0.00 | 3.08 | -11.58 | 76.95 | -8.09 | 122.65 | 0.1645 | 938.0 | 816.4 | |
| 1.49 | 325.33 | 0.75 | 164.12 | -13.26 | 76.80 | -8.24 | 130.13 | 0.1833 | 980.6 | 407.5 | |
| 0.00 | 2.10 | 0.00 | 1.06 | -13.65 | 76.54 | -8.50 | 130.88 | 0.1909 | 711.0 | 612.6 | |
| 56.21 | -7.00 | 28.33 | -7.00 | -12.77 | 76.26 | -8.78 | 126.26 | 0.1855 | 1335.4 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -11.38 | 76.27 | -8.77 | 119.70 | 0.1728 | 785.0 | 647.1 | |
| 1.49 | -7.00 | 0.75 | -7.00 | -13.43 | 76.02 | -9.02 | 128.35 | 0.1955 | 714.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -14.65 | 75.56 | -9.48 | 131.72 | 0.2145 | 828.0 | 658.2 | |
| 26.04 | -7.00 | 13.15 | -7.00 | -12.72 | 75.48 | -9.56 | 123.87 | 0.1960 | 1147.1 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -13.83 | 75.09 | -9.95 | 127.35 | 0.2120 | 621.0 | 376.5 | |
| 1.40 | -7.00 | 0.71 | -7.00 | -12.14 | 75.13 | -9.91 | 120.42 | 0.1960 | 776.5 | 999999 | |
| 1.49 | -7.00 | 0.75 | -7.00 | -11.99 | 75.11 | -9.93 | 119.67 | 0.1951 | 858.7 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -11.60 | 75.09 | -9.95 | 117.83 | 0.1923 | 680.0 | 611.9 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -13.55 | 74.92 | -10.12 | 125.82 | 0.2117 | 612.0 | 376.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.98 | 74.72 | -10.32 | 123.01 | 0.2091 | 178.0 | 212.0 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -12.73 | 74.61 | -10.43 | 121.73 | 0.2086 | 283.0 | 178.0 | |
| 0.00 | 2.98 | 0.00 | 1.51 | -11.98 | 74.48 | -10.56 | 118.21 | 0.2043 | 24.0 | 72.9 | |
| 0.00 | 3.16 | 0.00 | 1.60 | -13.63 | 74.19 | -10.85 | 124.32 | 0.2225 | 138.0 | 144.3 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -13.21 | 74.12 | -10.92 | 122.51 | 0.2197 | -135.0 | -117.1 | |
| 0.00 | 2.02 | 0.00 | 1.02 | -11.43 | 74.10 | -10.94 | 115.00 | 0.2061 | -813.0 | -515.3 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -13.05 | 73.81 | -11.23 | 121.21 | 0.2228 | -689.0 | -456.7 | |
| 0.53 | 82.78 | 0.27 | 42.20 | -13.26 | 73.77 | -11.27 | 121.94 | 0.2252 | -947.0 | -412.4 | |
| 0.00 | 2.72 | 0.00 | 1.38 | -13.53 | 73.76 | -11.28 | 122.95 | 0.2277 | -767.0 | -524.0 | |
| 0.00 | 2.10 | 0.00 | 1.08 | -15.82 | 73.35 | -11.69 | 129.90 | 0.2553 | -786.0 | -645.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -11.98 | 73.39 | -11.65 | 116.07 | 0.2209 | 589.0 | 409.4 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -11.65 | 73.38 | -11.66 | 114.66 | 0.2189 | -751.0 | -503.1 | |
| 0.00 | 1.75 | 0.00 | 0.90 | -15.66 | 73.14 | -11.90 | 128.92 | 0.2564 | -910.0 | -684.4 | |
| 1.93 | -26.00 | 0.98 | -26.00 | -13.87 | 72.99 | -12.05 | 122.58 | 0.2417 | -749.7 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -12.43 | 73.00 | -12.04 | 117.14 | 0.2300 | -804.0 | -572.0 | |
| 4.12 | -26.00 | 2.10 | -26.00 | -12.87 | 72.88 | -12.16 | 118.67 | 0.2351 | -934.8 | 999999 | |
| 3.24 | -26.00 | 1.66 | -26.00 | -13.45 | 72.82 | -12.22 | 120.70 | 0.2405 | -1031.4 | 999999 | |
| 15.52 | -26.00 | 7.92 | -26.00 | -13.11 | 72.74 | -12.30 | 119.32 | 0.2390 | -1156.3 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.12 | -14.08 | 72.66 | -12.38 | 122.64 | 0.2481 | -295.0 | -362.4 | |
| 0.00 | 2.37 | 0.00 | 1.22 | -15.83 | 72.52 | -12.52 | 128.10 | 0.2662 | -724.0 | -699.0 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -15.49 | 72.26 | -12.78 | 126.49 | 0.2665 | -776.0 | -596.4 | |
| 1.75 | 192.56 | 0.90 | 99.01 | -13.91 | 72.26 | -12.78 | 121.30 | 0.2525 | -1182.8 | -437.0 | |
| 0.70 | 4.30 | 0.36 | 2.20 | -13.28 | 72.04 | -13.00 | 118.65 | 0.2506 | -1025.6 | -768.8 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -11.65 | 72.00 | -13.04 | 112.47 | 0.2402 | -739.0 | -526.4 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -11.38 | 71.95 | -13.09 | 111.33 | 0.2394 | -1124.0 | -783.9 | |
| 2.72 | 65.85 | 1.39 | 33.74 | -12.69 | 71.63 | -13.41 | 115.86 | 0.2526 | -1149.4 | -807.2 | |
| 1.49 | -44.00 | 0.76 | -44.00 | -12.84 | 71.50 | -13.54 | 116.18 | 0.2556 | -1280.9 | 999999 | |
| 33.76 | -40.00 | 17.35 | -40.00 | -14.01 | 71.33 | -13.71 | 119.98 | 0.2667 | -1262.9 | 999999 | |
| 4.03 | -44.00 | 2.06 | -44.00 | -11.90 | 71.36 | -13.68 | 112.54 | 0.2517 | -1130.7 | 999999 | |
| 3.77 | -44.00 | 1.93 | -44.00 | -12.89 | 71.21 | -13.83 | 115.93 | 0.2603 | -1211.4 | 999999 | |
| 5.79 | -44.00 | 2.97 | -44.00 | -12.41 | 71.14 | -13.90 | 114.10 | 0.2582 | -1196.4 | 999999 | |
| 5.96 | -44.00 | 3.06 | -44.00 | -12.71 | 71.06 | -13.98 | 115.06 | 0.2613 | -1129.2 | 999999 | |
| 6.23 | -40.00 | 3.20 | -40.00 | -13.63 | 70.78 | -14.26 | 117.84 | 0.2719 | -1024.1 | 999999 | |
| 1.67 | -40.00 | 0.86 | -40.00 | -13.90 | 70.64 | -14.40 | 118.50 | 0.2760 | -878.3 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -12.99 | 70.35 | -14.69 | 115.03 | 0.2740 | -940.0 | -821.7 | |
| 0.00 | 4.21 | 0.00 | 2.17 | -13.19 | 70.21 | -14.83 | 115.53 | 0.2775 | -652.0 | -598.6 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -14.81 | 69.74 | -15.30 | 120.00 | 0.2958 | -818.0 | -594.5 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -18.32 | 67.21 | -17.83 | 125.70 | 0.3595 | -565.0 | -582.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
