SDO HMI 2014-03-31 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.70 | 15.86 | 6.71 | 18.55 | 10.06 | 147.49 | 63.00 | 284.40 | 0.9067 | -128.0 | -157.6 | |
|
previous
or next observation for the same group /

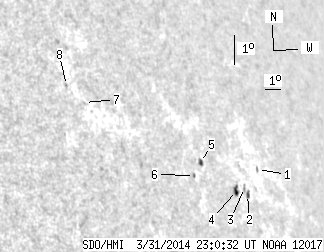

back to the solar disc SDO HMI 2014-03-31 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 1.81 | 10.56 | 150.02 | 65.53 | 284.33 | 0.9252 | -101.0 | -118.9 | |
| 1.05 | 2.89 | 1.29 | 3.56 | 9.67 | 148.95 | 64.46 | 283.62 | 0.9169 | -391.8 | -345.1 | |
| 0.00 | 1.58 | 0.00 | 1.93 | 9.87 | 148.81 | 64.32 | 283.87 | 0.9162 | -198.0 | -296.7 | |
| 3.07 | 4.91 | 3.66 | 5.86 | 9.72 | 148.19 | 63.70 | 283.84 | 0.9118 | -491.7 | -436.2 | |
| 1.58 | 2.81 | 1.76 | 3.12 | 10.36 | 146.01 | 61.52 | 285.04 | 0.8972 | 170.8 | 72.4 | |
| 0.00 | 1.05 | 0.00 | 1.15 | 9.90 | 145.47 | 60.99 | 284.67 | 0.8924 | 151.0 | 176.8 | |
| 0.00 | 0.26 | 0.00 | 0.24 | 11.59 | 139.61 | 55.12 | 288.17 | 0.8479 | 298.0 | 316.7 | |
| 0.00 | 0.96 | 0.00 | 0.88 | 12.04 | 138.78 | 54.29 | 288.94 | 0.8418 | 356.0 | 324.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
