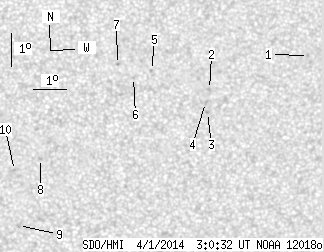

SDO HMI 2014-04-01 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.37 | 0.00 | 6.18 | -13.00 | 83.05 | 0.76 | 189.14 | 0.1234 | 345.8 | 264.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.16 | 88.12 | 5.83 | 230.96 | 0.1289 | 884.0 | 729.2 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -12.20 | 85.10 | 2.81 | 205.93 | 0.1101 | 949.0 | 690.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.90 | 85.04 | 2.76 | 202.97 | 0.1207 | 851.0 | 709.2 | |
| 0.00 | 1.84 | 0.00 | 0.92 | -12.60 | 84.98 | 2.69 | 203.51 | 0.1154 | 787.0 | 661.2 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.64 | 83.32 | 1.03 | 191.25 | 0.0907 | 776.0 | 599.3 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.85 | 82.77 | 0.48 | 185.09 | 0.0930 | 777.0 | 624.1 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -11.46 | 82.28 | -0.01 | 179.90 | 0.0858 | 935.0 | 751.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -14.28 | 79.90 | -2.39 | 163.26 | 0.1411 | -963.0 | -743.7 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -16.31 | 79.18 | -3.11 | 162.95 | 0.1781 | -682.0 | -617.7 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -14.64 | 79.09 | -3.20 | 159.00 | 0.1515 | -856.0 | -684.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
