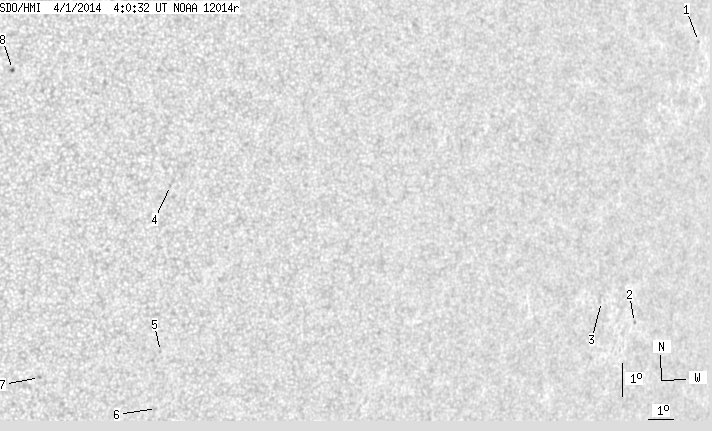

SDO HMI 2014-04-01 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.37 | 0.00 | 4.88 | -14.87 | 121.46 | 39.72 | 253.51 | 0.6358 | -230.8 | -144.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.73 | -7.79 | 135.38 | 53.64 | 265.15 | 0.8030 | 587.0 | 524.9 | |
| 0.00 | 1.05 | 0.00 | 0.86 | -16.43 | 134.55 | 52.82 | 254.30 | 0.7960 | 334.0 | 317.3 | |
| 0.00 | 0.61 | 0.00 | 0.48 | -15.94 | 132.70 | 50.96 | 254.74 | 0.7764 | 532.0 | 546.3 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -13.75 | 114.16 | 32.42 | 254.69 | 0.5420 | -661.0 | -498.7 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -18.79 | 114.73 | 32.99 | 246.01 | 0.5664 | -635.0 | -533.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -20.54 | 114.98 | 33.24 | 243.20 | 0.5773 | -436.0 | -394.3 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -19.83 | 110.46 | 28.72 | 241.75 | 0.5152 | -791.0 | -663.8 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -10.57 | 108.20 | 26.46 | 259.42 | 0.4475 | -776.0 | -714.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
