SDO HMI 2014-04-01 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.62 | 311.50 | 89.23 | 341.34 | -11.39 | 17.43 | -63.76 | 99.48 | 0.8920 | -93.0 | -60.6 | |
|
previous
or next observation for the same group /

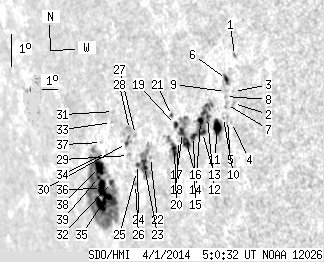

back to the solar disc SDO HMI 2014-04-01 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.84 | 0.00 | 1.64 | -8.80 | 24.42 | -56.77 | 96.23 | 0.8337 | 628.0 | 509.0 | |
| 0.00 | 2.11 | 0.00 | 1.90 | -10.22 | 23.99 | -57.20 | 97.94 | 0.8374 | 704.0 | 575.2 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -9.86 | 24.09 | -57.10 | 97.52 | 0.8365 | 578.0 | 586.0 | |
| 0.00 | 0.97 | 0.00 | 0.88 | -10.77 | 23.72 | -57.48 | 98.61 | 0.8399 | 665.0 | 587.4 | |
| 0.00 | 3.51 | 0.00 | 3.20 | -10.69 | 23.51 | -57.68 | 98.52 | 0.8418 | 502.0 | 476.5 | |
| 2.46 | 5.79 | 2.23 | 5.25 | -9.47 | 23.80 | -57.39 | 97.06 | 0.8394 | 639.8 | 520.0 | |
| 0.00 | 2.72 | 0.00 | 2.48 | -10.21 | 23.59 | -57.60 | 97.95 | 0.8411 | 601.0 | 481.3 | |
| 0.00 | 1.05 | 0.00 | 0.96 | -9.97 | 23.61 | -57.59 | 97.66 | 0.8411 | 652.0 | 600.3 | |
| 0.00 | 1.40 | 0.00 | 1.28 | -9.82 | 23.65 | -57.54 | 97.48 | 0.8407 | 679.0 | 498.1 | |
| 0.00 | 0.88 | 0.00 | 0.80 | -10.58 | 23.31 | -57.88 | 98.39 | 0.8436 | 710.0 | 645.4 | |
| 8.08 | 13.96 | 7.49 | 12.94 | -10.84 | 22.88 | -58.31 | 98.71 | 0.8475 | 710.7 | 334.0 | |
| 1.40 | 61.71 | 1.32 | 59.42 | -10.49 | 22.40 | -58.79 | 98.31 | 0.8520 | 566.6 | 59.2 | |
| 2.55 | -12.00 | 2.42 | -12.00 | -10.90 | 21.97 | -59.22 | 98.80 | 0.8557 | 365.6 | 999999 | |
| 3.34 | -12.00 | 3.17 | -12.00 | -10.57 | 21.96 | -59.23 | 98.41 | 0.8559 | 318.4 | 999999 | |
| 2.63 | -12.00 | 2.54 | -12.00 | -10.97 | 21.40 | -59.79 | 98.89 | 0.8607 | 561.0 | 999999 | |
| 5.35 | -12.00 | 5.25 | -12.00 | -11.11 | 20.93 | -60.26 | 99.06 | 0.8649 | 555.2 | 999999 | |
| 3.34 | -12.00 | 3.29 | -12.00 | -10.79 | 20.79 | -60.40 | 98.70 | 0.8661 | -432.7 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.05 | -11.00 | 20.46 | -60.73 | 98.95 | 0.8688 | 386.0 | 291.6 | |
| 1.84 | -12.00 | 1.83 | -12.00 | -10.51 | 20.44 | -60.75 | 98.38 | 0.8691 | 262.3 | 999999 | |
| 4.92 | 16.94 | 4.94 | 17.08 | -11.24 | 20.12 | -61.07 | 99.23 | 0.8717 | 489.4 | 40.0 | |
| 0.79 | 1.58 | 0.79 | 1.58 | -10.22 | 20.29 | -60.90 | 98.06 | 0.8705 | 212.6 | 157.6 | |
| 0.00 | 0.97 | 0.00 | 1.02 | -11.32 | 18.52 | -62.67 | 99.37 | 0.8848 | -648.0 | -568.5 | |
| 6.67 | 23.96 | 7.15 | 25.64 | -11.55 | 18.03 | -63.17 | 99.64 | 0.8887 | -367.2 | -233.4 | |
| 1.14 | -23.00 | 1.24 | -23.00 | -11.44 | 17.59 | -63.60 | 99.53 | 0.8921 | 456.5 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.15 | -11.64 | 17.43 | -63.76 | 99.76 | 0.8933 | 160.0 | 92.0 | |
| 0.00 | 1.05 | 0.00 | 1.16 | -12.01 | 17.20 | -63.99 | 100.18 | 0.8950 | 301.0 | 262.4 | |
| 0.00 | 1.58 | 0.00 | 1.71 | -10.55 | 17.80 | -63.39 | 98.52 | 0.8907 | -363.0 | -334.3 | |
| 0.00 | 3.77 | 0.00 | 4.13 | -10.36 | 17.46 | -63.73 | 98.32 | 0.8934 | -299.0 | -277.6 | |
| 0.00 | 2.11 | 0.00 | 2.33 | -11.12 | 17.09 | -64.10 | 99.18 | 0.8960 | -642.0 | -577.2 | |
| 1.23 | 4.92 | 1.36 | 5.42 | -10.75 | 17.10 | -64.10 | 98.77 | 0.8961 | -507.0 | -486.8 | |
| 0.00 | 1.40 | 0.00 | 1.59 | -9.72 | 16.56 | -64.63 | 97.65 | 0.9004 | -293.0 | -247.8 | |
| 2.02 | 151.85 | 2.36 | 182.93 | -11.78 | 15.56 | -65.63 | 99.98 | 0.9072 | -751.8 | -128.3 | |
| 0.00 | 0.97 | 0.00 | 1.10 | -10.03 | 16.30 | -64.89 | 98.01 | 0.9022 | -431.0 | -418.0 | |
| 0.00 | 1.84 | 0.00 | 2.15 | -10.87 | 15.59 | -65.60 | 98.97 | 0.9072 | -498.0 | -460.9 | |
| 13.61 | -32.00 | 16.38 | -32.00 | -12.28 | 14.71 | -66.48 | 100.55 | 0.9131 | -628.6 | 999999 | |
| 10.36 | -32.00 | 12.43 | -32.00 | -11.88 | 14.75 | -66.44 | 100.11 | 0.9129 | -559.4 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.31 | -10.54 | 15.36 | -65.83 | 98.61 | 0.9090 | -240.0 | -251.0 | |
| 9.66 | -32.00 | 11.56 | -32.00 | -11.26 | 14.89 | -66.30 | 99.42 | 0.9121 | -563.8 | 999999 | |
| 1.23 | -32.00 | 1.48 | -32.00 | -11.54 | 14.68 | -66.51 | 99.74 | 0.9135 | -264.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
