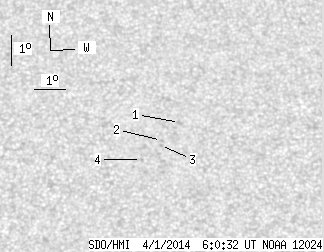

SDO HMI 2014-04-01 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.18 | 0.00 | 2.85 | 17.70 | 90.29 | 9.64 | 338.70 | 0.4408 | -701.5 | -582.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 1.12 | 18.24 | 90.82 | 10.17 | 338.10 | 0.4518 | -746.0 | -579.3 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 17.64 | 90.21 | 9.56 | 338.79 | 0.4395 | -598.0 | -525.1 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 17.47 | 90.17 | 9.52 | 338.73 | 0.4369 | -775.0 | -702.3 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 17.00 | 89.54 | 8.89 | 339.62 | 0.4265 | -687.0 | -552.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
