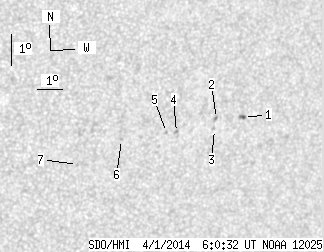

SDO HMI 2014-04-01 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.97 | 8.60 | 0.62 | 5.42 | -24.18 | 115.93 | 35.29 | 238.49 | 0.6201 | -152.9 | -14.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.97 | 2.37 | 0.62 | 1.53 | -23.67 | 118.00 | 37.36 | 240.39 | 0.6415 | 756.5 | 665.8 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -23.77 | 116.93 | 36.28 | 239.71 | 0.6295 | 745.0 | 610.8 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -24.11 | 116.96 | 36.32 | 239.21 | 0.6315 | 537.0 | 496.1 | |
| 0.00 | 1.67 | 0.00 | 1.05 | -24.30 | 115.48 | 34.84 | 238.13 | 0.6153 | -662.0 | -465.5 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -24.33 | 115.09 | 34.44 | 237.87 | 0.6108 | -890.0 | -789.4 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -24.65 | 113.40 | 32.76 | 236.36 | 0.5930 | -718.0 | -598.1 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -25.53 | 111.94 | 31.30 | 234.02 | 0.5815 | -493.0 | -420.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
