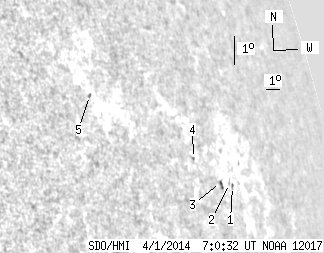

SDO HMI 2014-04-01 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 7.28 | 0.75 | 9.89 | 10.13 | 146.86 | 66.76 | 283.65 | 0.9312 | -54.6 | -119.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 2.50 | 9.76 | 149.15 | 69.05 | 282.76 | 0.9452 | -253.0 | -218.9 | |
| 0.00 | 0.26 | 0.00 | 0.39 | 9.82 | 148.92 | 68.83 | 282.87 | 0.9440 | -357.0 | -341.0 | |
| 0.53 | 2.72 | 0.75 | 3.90 | 9.77 | 148.15 | 68.05 | 282.97 | 0.9395 | -464.7 | -424.1 | |
| 0.00 | 1.23 | 0.00 | 1.62 | 10.31 | 146.24 | 66.14 | 283.93 | 0.9287 | 239.0 | 193.3 | |
| 0.00 | 1.40 | 0.00 | 1.48 | 11.59 | 139.70 | 59.60 | 286.86 | 0.8848 | 460.0 | 412.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
