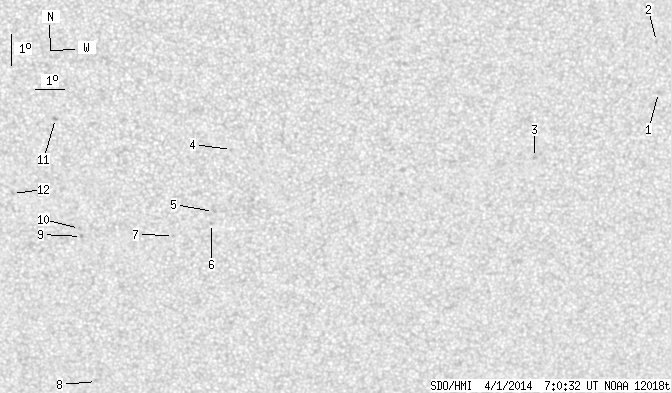

SDO HMI 2014-04-01 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.27 | 0.00 | 8.16 | -27.23 | 82.29 | 2.19 | 185.52 | 0.3772 | -499.4 | -403.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.76 | -24.33 | 95.78 | 15.69 | 218.52 | 0.3973 | -809.0 | -564.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -22.74 | 95.52 | 15.43 | 220.94 | 0.3760 | 820.0 | 682.0 | |
| 0.00 | 1.84 | 0.00 | 0.99 | -26.49 | 91.79 | 11.70 | 207.85 | 0.3901 | 819.0 | 722.5 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -26.35 | 81.57 | 1.47 | 183.89 | 0.3413 | -728.0 | -595.1 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -28.34 | 80.98 | 0.88 | 182.10 | 0.3733 | -641.0 | -621.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -28.73 | 80.92 | 0.82 | 181.90 | 0.3796 | -884.0 | -673.7 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -29.11 | 79.61 | -0.48 | 178.90 | 0.3857 | -774.0 | -660.5 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -33.93 | 76.80 | -3.30 | 174.08 | 0.4647 | -500.0 | -406.2 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -29.13 | 76.46 | -3.64 | 171.79 | 0.3901 | -764.0 | -632.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -28.87 | 76.40 | -3.70 | 171.55 | 0.3861 | -925.0 | -770.7 | |
| 0.00 | 1.93 | 0.00 | 1.01 | -25.34 | 75.72 | -4.38 | 167.94 | 0.3314 | -924.0 | -760.1 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -27.72 | 74.16 | -5.93 | 165.81 | 0.3749 | -683.0 | -605.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
