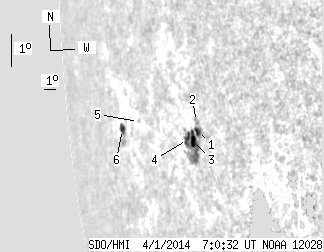

SDO HMI 2014-04-01 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.13 | 52.68 | 26.21 | 78.96 | -8.33 | 8.75 | -71.34 | 96.58 | 0.9439 | 246.4 | 214.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.81 | 40.91 | 3.81 | 56.81 | -8.44 | 10.85 | -69.25 | 96.54 | 0.9326 | 661.9 | 298.6 | |
| 0.00 | 2.55 | 0.00 | 3.46 | -8.14 | 10.88 | -69.22 | 96.21 | 0.9326 | 372.0 | 323.2 | |
| 6.50 | -1.00 | 8.99 | -1.00 | -8.67 | 10.40 | -69.69 | 96.81 | 0.9353 | 573.7 | 999999 | |
| 4.13 | -1.00 | 5.84 | -1.00 | -8.58 | 9.90 | -70.20 | 96.75 | 0.9383 | 177.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.74 | -7.55 | 5.37 | -74.73 | 96.01 | 0.9628 | -236.0 | -227.3 | |
| 3.69 | 8.25 | 7.57 | 16.95 | -7.57 | 3.35 | -76.74 | 96.21 | 0.9716 | -251.2 | -88.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
