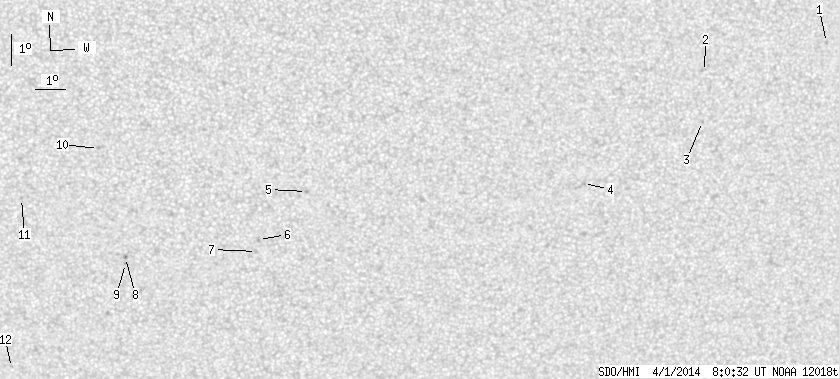

SDO HMI 2014-04-01 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.61 | 0.00 | 7.29 | -26.75 | 83.68 | 4.13 | 190.23 | 0.3812 | -469.6 | -408.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.62 | -21.71 | 99.64 | 20.09 | 229.94 | 0.4187 | 786.0 | 628.7 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -22.75 | 95.62 | 16.07 | 222.01 | 0.3830 | 235.0 | 378.8 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -24.31 | 95.75 | 16.20 | 219.39 | 0.4023 | -822.0 | -610.9 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -26.38 | 91.92 | 12.37 | 209.31 | 0.3938 | 831.0 | 600.9 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -26.75 | 82.57 | 3.02 | 187.75 | 0.3506 | -997.0 | -823.4 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -28.30 | 80.98 | 1.43 | 183.39 | 0.3732 | -864.0 | -715.1 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -28.69 | 80.91 | 1.36 | 183.17 | 0.3794 | -811.0 | -573.9 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -28.87 | 76.43 | -3.12 | 172.86 | 0.3849 | -1004.0 | -857.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -29.07 | 76.43 | -3.12 | 172.92 | 0.3880 | -795.0 | -697.7 | |
| 0.00 | 1.49 | 0.00 | 0.78 | -25.37 | 75.64 | -3.91 | 169.20 | 0.3305 | -873.0 | -741.7 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -26.94 | 72.98 | -6.57 | 163.73 | 0.3655 | -658.0 | -526.3 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -32.44 | 72.24 | -7.31 | 166.23 | 0.4526 | -663.0 | -530.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
