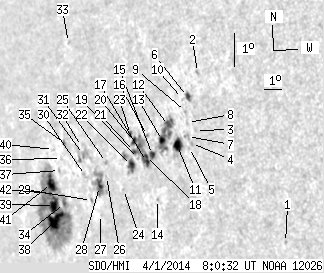

SDO HMI 2014-04-01 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.73 | 340.06 | 85.29 | 354.67 | -11.40 | 17.36 | -62.19 | 99.45 | 0.8796 | -53.3 | -68.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 1.19 | -14.23 | 27.61 | -51.94 | 103.00 | 0.7856 | 541.0 | 424.9 | |
| 0.00 | 1.58 | 0.00 | 1.35 | -8.78 | 24.57 | -54.98 | 96.15 | 0.8162 | 653.0 | 562.6 | |
| 0.00 | 1.32 | 0.00 | 1.14 | -10.49 | 24.04 | -55.51 | 98.25 | 0.8211 | 620.0 | 497.3 | |
| 0.00 | 1.49 | 0.00 | 1.30 | -10.85 | 23.72 | -55.83 | 98.70 | 0.8242 | 726.0 | 638.8 | |
| 0.00 | 1.93 | 0.00 | 1.69 | -10.96 | 23.58 | -55.97 | 98.83 | 0.8256 | 472.0 | 455.3 | |
| 1.93 | 3.86 | 1.67 | 3.35 | -9.44 | 23.88 | -55.67 | 96.98 | 0.8229 | 686.0 | 621.5 | |
| 0.00 | 2.90 | 0.00 | 2.53 | -10.63 | 23.56 | -55.99 | 98.43 | 0.8258 | 691.0 | 593.8 | |
| 0.00 | 0.79 | 0.00 | 0.69 | -10.21 | 23.68 | -55.87 | 97.92 | 0.8247 | 677.0 | 664.8 | |
| 0.00 | 1.05 | 0.00 | 0.92 | -9.88 | 23.66 | -55.89 | 97.51 | 0.8250 | 456.0 | 502.8 | |
| 0.00 | 0.97 | 0.00 | 0.84 | -9.48 | 23.59 | -55.95 | 97.03 | 0.8257 | 330.0 | 317.5 | |
| 7.72 | 14.22 | 6.85 | 12.62 | -10.84 | 22.95 | -56.60 | 98.70 | 0.8317 | 725.6 | 295.3 | |
| 6.58 | 32.74 | 5.89 | 29.48 | -10.20 | 22.63 | -56.92 | 97.93 | 0.8348 | 494.2 | 218.8 | |
| 4.04 | -12.00 | 3.66 | -12.00 | -10.62 | 22.17 | -57.38 | 98.44 | 0.8391 | 229.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.81 | -12.33 | 21.32 | -58.23 | 100.48 | 0.8468 | 463.0 | 377.9 | |
| 2.63 | 36.52 | 2.43 | 34.20 | -10.98 | 21.48 | -58.07 | 98.88 | 0.8454 | 646.8 | -149.3 | |
| 0.00 | 1.05 | 0.00 | 0.97 | -10.39 | 21.37 | -58.18 | 98.18 | 0.8465 | 197.0 | 147.2 | |
| 3.86 | -15.00 | 3.60 | -15.00 | -11.15 | 21.07 | -58.47 | 99.09 | 0.8490 | 558.8 | 999999 | |
| 1.93 | -15.00 | 1.80 | -15.00 | -11.00 | 21.07 | -58.48 | 98.91 | 0.8492 | 364.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.99 | -11.02 | 20.64 | -58.91 | 98.94 | 0.8529 | 234.0 | 250.8 | |
| 2.98 | -15.00 | 2.82 | -15.00 | -10.49 | 20.57 | -58.98 | 98.33 | 0.8537 | 112.5 | 999999 | |
| 1.49 | -15.00 | 1.41 | -15.00 | -10.79 | 20.48 | -59.07 | 98.67 | 0.8545 | 56.4 | 999999 | |
| 5.27 | 14.05 | 5.03 | 13.46 | -11.18 | 20.17 | -59.38 | 99.14 | 0.8572 | 497.5 | 56.2 | |
| 1.32 | -15.00 | 1.25 | -15.00 | -10.26 | 20.41 | -59.14 | 98.06 | 0.8552 | 56.9 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.77 | -11.84 | 19.44 | -60.11 | 99.92 | 0.8634 | 218.0 | 197.0 | |
| 0.00 | 1.49 | 0.00 | 1.49 | -10.95 | 18.70 | -60.85 | 98.90 | 0.8699 | 282.0 | 192.6 | |
| 0.00 | 0.70 | 0.00 | 0.70 | -11.36 | 18.56 | -60.99 | 99.38 | 0.8711 | -492.0 | -492.5 | |
| 0.00 | 0.61 | 0.00 | 0.63 | -12.44 | 17.74 | -61.80 | 100.63 | 0.8776 | 389.0 | 311.0 | |
| 7.11 | 21.33 | 7.23 | 21.70 | -11.61 | 18.01 | -61.54 | 99.68 | 0.8756 | -370.6 | -237.5 | |
| 0.00 | 1.76 | 0.00 | 1.82 | -11.97 | 17.34 | -62.21 | 100.11 | 0.8810 | 298.0 | 219.0 | |
| 0.00 | 3.25 | 0.00 | 3.39 | -11.20 | 17.25 | -62.30 | 99.23 | 0.8818 | -390.0 | -469.6 | |
| 0.00 | 11.76 | 0.00 | 12.23 | -10.57 | 17.35 | -62.20 | 98.51 | 0.8812 | -621.0 | -372.7 | |
| 0.00 | 0.44 | 0.00 | 0.46 | -10.32 | 17.31 | -62.24 | 98.23 | 0.8816 | -256.0 | -265.8 | |
| 0.00 | 1.23 | 0.00 | 1.28 | -7.18 | 17.39 | -62.16 | 94.65 | 0.8822 | -496.0 | -358.8 | |
| 1.32 | 172.93 | 1.45 | 196.24 | -11.88 | 15.54 | -64.01 | 100.04 | 0.8952 | -752.3 | -117.1 | |
| 0.79 | 2.02 | 0.85 | 2.18 | -10.12 | 16.24 | -63.31 | 98.05 | 0.8902 | -411.3 | -376.7 | |
| 0.00 | 1.05 | 0.00 | 1.15 | -10.54 | 15.87 | -63.68 | 98.53 | 0.8929 | -409.0 | -345.3 | |
| 0.00 | 1.49 | 0.00 | 1.64 | -10.88 | 15.60 | -63.95 | 98.92 | 0.8949 | -505.0 | -495.4 | |
| 14.66 | -34.00 | 16.64 | -34.00 | -12.32 | 14.69 | -64.86 | 100.55 | 0.9015 | -619.1 | 999999 | |
| 9.39 | -34.00 | 10.62 | -34.00 | -11.87 | 14.82 | -64.72 | 100.05 | 0.9006 | -564.0 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.46 | -10.22 | 15.44 | -64.11 | 98.19 | 0.8964 | -208.0 | -139.7 | |
| 9.48 | -34.00 | 10.69 | -34.00 | -11.21 | 14.90 | -64.65 | 99.31 | 0.9001 | -558.7 | 999999 | |
| 1.23 | -34.00 | 1.40 | -34.00 | -11.49 | 14.70 | -64.85 | 99.63 | 0.9015 | -275.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
