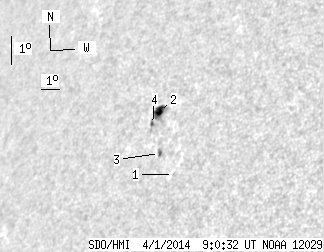

SDO HMI 2014-04-01 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.78 | 22.03 | 7.90 | 19.78 | 17.52 | 27.17 | -51.83 | 63.97 | 0.8364 | 367.6 | 210.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.60 | 15.67 | 28.61 | -50.39 | 65.50 | 0.8174 | -301.0 | -341.0 | |
| 7.20 | 14.48 | 6.50 | 13.06 | 17.84 | 27.09 | -51.91 | 63.65 | 0.8382 | 549.3 | 363.6 | |
| 0.79 | 2.81 | 0.69 | 2.47 | 16.43 | 27.64 | -51.36 | 65.02 | 0.8287 | -525.1 | -359.1 | |
| 0.79 | 4.04 | 0.71 | 3.65 | 17.44 | 26.90 | -52.11 | 64.18 | 0.8385 | 513.7 | 327.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
