SDO HMI 2014-04-01 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.78 | 0.00 | 9.24 | -16.94 | 119.34 | 40.88 | 250.66 | 0.6587 | -101.0 | -70.0 | |
|
previous
or next observation for the same group /

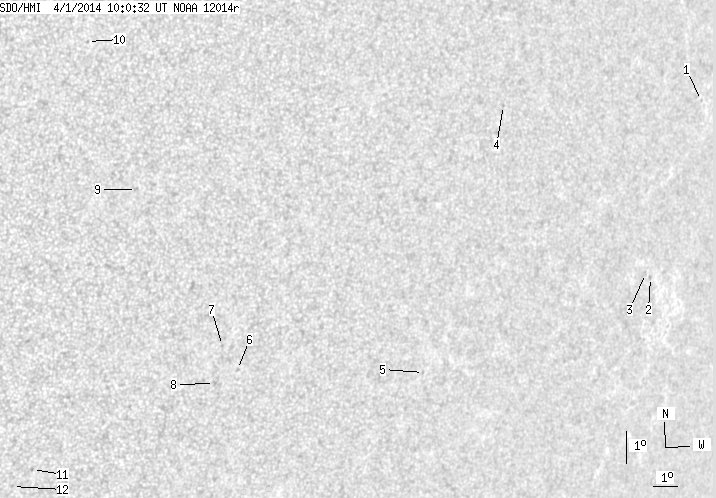

back to the solar disc SDO HMI 2014-04-01 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.60 | -10.42 | 133.84 | 55.38 | 261.82 | 0.8199 | 489.0 | 420.6 | |
| 0.00 | 1.49 | 0.00 | 1.26 | -15.92 | 132.92 | 54.46 | 255.05 | 0.8122 | 629.0 | 507.0 | |
| 0.00 | 0.97 | 0.00 | 0.81 | -15.82 | 132.61 | 54.15 | 255.14 | 0.8091 | 608.0 | 543.1 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -11.38 | 124.46 | 46.01 | 260.44 | 0.7175 | 567.0 | 449.0 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -19.67 | 123.23 | 44.77 | 248.71 | 0.7141 | 549.0 | 437.7 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -20.12 | 115.50 | 37.04 | 245.60 | 0.6234 | -506.0 | -463.1 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -19.42 | 114.72 | 36.26 | 246.37 | 0.6111 | -622.0 | -487.9 | |
| 0.00 | 1.84 | 0.00 | 1.16 | -20.61 | 114.71 | 36.26 | 244.51 | 0.6156 | -561.0 | -456.1 | |
| 0.00 | 1.84 | 0.00 | 1.08 | -14.89 | 110.50 | 32.05 | 252.43 | 0.5400 | -479.0 | -435.1 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -10.55 | 108.16 | 29.71 | 260.11 | 0.4965 | -518.0 | -470.1 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -23.67 | 108.48 | 30.02 | 236.03 | 0.5547 | -774.0 | -482.3 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -24.24 | 107.86 | 29.41 | 234.65 | 0.5511 | -594.0 | -400.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
