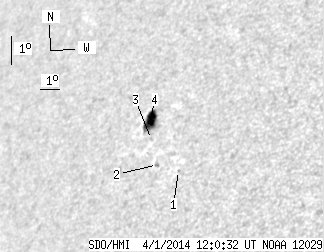

SDO HMI 2014-04-01 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.57 | 25.36 | 12.70 | 21.99 | 17.55 | 27.06 | -50.30 | 63.32 | 0.8232 | 406.6 | 123.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.65 | 15.94 | 28.91 | -48.45 | 64.37 | 0.8003 | -499.0 | -447.7 | |
| 0.00 | 1.84 | 0.00 | 1.56 | 16.23 | 27.81 | -49.55 | 64.50 | 0.8117 | -577.0 | -425.4 | |
| 0.00 | 1.32 | 0.00 | 1.13 | 17.09 | 27.21 | -50.15 | 63.77 | 0.8202 | 194.0 | 179.1 | |
| 14.57 | 21.41 | 12.70 | 18.65 | 17.74 | 26.92 | -50.44 | 63.16 | 0.8251 | 572.1 | 318.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
