SDO HMI 2014-04-01 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.42 | 394.29 | 92.03 | 371.47 | -11.33 | 17.48 | -58.78 | 99.31 | 0.8504 | -75.4 | -69.9 | |
|
previous
or next observation for the same group /

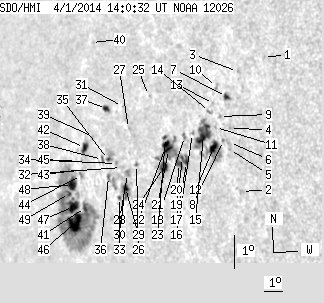

back to the solar disc SDO HMI 2014-04-01 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 1.08 | -8.39 | 26.10 | -50.16 | 95.49 | 0.7654 | 540.0 | 394.9 | |
| 0.00 | 2.72 | 0.00 | 2.17 | -12.27 | 24.14 | -52.13 | 100.51 | 0.7868 | 642.0 | 473.1 | |
| 0.00 | 1.32 | 0.00 | 1.04 | -8.69 | 24.79 | -51.47 | 95.93 | 0.7797 | 611.0 | 499.2 | |
| 0.00 | 1.05 | 0.00 | 0.84 | -10.35 | 24.04 | -52.23 | 98.06 | 0.7876 | 766.0 | 685.4 | |
| 0.00 | 1.23 | 0.00 | 0.99 | -10.97 | 23.88 | -52.38 | 98.86 | 0.7892 | 658.0 | 550.6 | |
| 0.00 | 0.61 | 0.00 | 0.49 | -10.77 | 23.93 | -52.33 | 98.59 | 0.7887 | 383.0 | 482.6 | |
| 2.19 | 3.60 | 1.75 | 2.88 | -9.39 | 24.11 | -52.16 | 96.84 | 0.7870 | 667.4 | 538.2 | |
| 0.00 | 1.23 | 0.00 | 0.99 | -10.68 | 23.65 | -52.61 | 98.48 | 0.7916 | 668.0 | 642.7 | |
| 0.00 | 1.40 | 0.00 | 1.13 | -9.95 | 23.63 | -52.63 | 97.56 | 0.7919 | 711.0 | 599.8 | |
| 0.00 | 2.28 | 0.00 | 1.84 | -9.05 | 23.68 | -52.58 | 96.41 | 0.7916 | 439.0 | 383.7 | |
| 0.00 | 0.88 | 0.00 | 0.71 | -10.26 | 23.35 | -52.91 | 97.95 | 0.7948 | 652.0 | 606.0 | |
| 5.62 | 54.57 | 4.59 | 44.85 | -10.84 | 23.10 | -53.16 | 98.69 | 0.7974 | 743.0 | 279.1 | |
| 0.00 | 0.88 | 0.00 | 0.71 | -9.54 | 23.42 | -52.84 | 97.04 | 0.7942 | 217.0 | 222.1 | |
| 0.00 | 2.46 | 0.00 | 2.00 | -9.76 | 23.17 | -53.10 | 97.32 | 0.7968 | 445.0 | 417.9 | |
| 15.70 | -12.00 | 12.94 | -12.00 | -10.41 | 22.70 | -53.56 | 98.15 | 0.8016 | 541.9 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.88 | -10.33 | 22.15 | -54.11 | 98.05 | 0.8072 | 374.0 | 258.6 | |
| 1.67 | 43.08 | 1.41 | 36.99 | -11.16 | 21.61 | -54.65 | 99.08 | 0.8126 | 702.3 | 12.8 | |
| 0.00 | 2.72 | 0.00 | 2.29 | -10.38 | 21.72 | -54.55 | 98.12 | 0.8116 | 381.0 | 258.0 | |
| 0.26 | -17.00 | 0.22 | -17.00 | -10.99 | 21.44 | -54.82 | 98.88 | 0.8143 | 413.7 | 999999 | |
| 3.60 | -17.00 | 3.07 | -17.00 | -11.16 | 21.24 | -55.02 | 99.08 | 0.8163 | 503.9 | 999999 | |
| 4.30 | -17.00 | 3.71 | -17.00 | -10.69 | 20.78 | -55.49 | 98.51 | 0.8209 | -772.7 | 999999 | |
| 4.30 | -17.00 | 3.72 | -17.00 | -10.53 | 20.71 | -55.55 | 98.32 | 0.8215 | -92.3 | 999999 | |
| 0.97 | -17.00 | 0.83 | -17.00 | -10.32 | 20.72 | -55.55 | 98.06 | 0.8215 | 385.3 | 999999 | |
| 6.23 | 8.86 | 5.43 | 7.72 | -11.20 | 20.36 | -55.90 | 99.13 | 0.8249 | 502.7 | 222.9 | |
| 0.00 | 0.53 | 0.00 | 0.46 | -8.99 | 20.13 | -56.14 | 96.46 | 0.8276 | 291.0 | 263.3 | |
| 0.53 | 1.84 | 0.48 | 1.67 | -10.97 | 18.92 | -57.34 | 98.87 | 0.8387 | 273.3 | 197.2 | |
| 0.00 | 0.88 | 0.00 | 0.80 | -9.86 | 18.78 | -57.48 | 97.55 | 0.8401 | 306.0 | 299.2 | |
| 0.00 | 4.21 | 0.00 | 3.87 | -11.19 | 18.33 | -57.93 | 99.14 | 0.8441 | -392.0 | -318.5 | |
| 2.72 | 28.08 | 2.51 | 26.11 | -11.59 | 18.08 | -58.18 | 99.62 | 0.8463 | -616.1 | -360.1 | |
| 1.05 | -29.00 | 0.98 | -29.00 | -11.76 | 17.97 | -58.30 | 99.82 | 0.8474 | -250.8 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.72 | -9.18 | 18.62 | -57.64 | 96.74 | 0.8418 | -395.0 | -317.9 | |
| 0.00 | 2.63 | 0.00 | 2.43 | -10.98 | 18.05 | -58.21 | 98.89 | 0.8467 | -388.0 | -338.2 | |
| 0.79 | -29.00 | 0.74 | -29.00 | -11.85 | 17.64 | -58.62 | 99.93 | 0.8503 | 335.7 | 999999 | |
| 0.00 | 1.23 | 0.00 | 1.14 | -10.83 | 17.80 | -58.46 | 98.72 | 0.8490 | -565.0 | -532.9 | |
| 1.23 | 11.58 | 1.16 | 10.91 | -10.67 | 17.38 | -58.88 | 98.54 | 0.8528 | -684.9 | -425.5 | |
| 0.79 | -29.00 | 0.75 | -29.00 | -11.17 | 17.22 | -59.04 | 99.13 | 0.8542 | -582.7 | 999999 | |
| 2.81 | 4.74 | 2.63 | 4.43 | -9.15 | 17.70 | -58.56 | 96.75 | 0.8503 | 340.2 | 139.5 | |
| 0.97 | -35.00 | 0.92 | -35.00 | -10.64 | 17.03 | -59.23 | 98.51 | 0.8559 | -334.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.84 | -9.90 | 16.66 | -59.60 | 97.66 | 0.8594 | -502.0 | -470.7 | |
| 0.00 | 0.70 | 0.00 | 0.66 | -7.12 | 17.31 | -58.95 | 94.38 | 0.8547 | -486.0 | -390.6 | |
| 3.07 | 192.05 | 3.05 | 195.26 | -11.95 | 15.52 | -60.74 | 100.07 | 0.8688 | -785.7 | -115.7 | |
| 3.60 | 8.60 | 3.52 | 8.40 | -10.18 | 16.08 | -60.18 | 98.00 | 0.8644 | -582.4 | -468.2 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -10.82 | 15.75 | -60.51 | 98.75 | 0.8671 | -512.0 | -495.7 | |
| 0.00 | 2.98 | 0.00 | 2.96 | -10.99 | 15.63 | -60.64 | 98.95 | 0.8681 | -596.0 | -494.3 | |
| 0.00 | 0.97 | 0.00 | 0.95 | -10.57 | 15.77 | -60.49 | 98.47 | 0.8670 | -415.0 | -355.3 | |
| 17.72 | -41.00 | 18.05 | -41.00 | -12.33 | 14.73 | -61.53 | 100.51 | 0.8754 | -610.6 | 999999 | |
| 9.30 | -41.00 | 9.45 | -41.00 | -11.85 | 14.80 | -61.47 | 99.96 | 0.8749 | -483.7 | 999999 | |
| 8.25 | -41.00 | 8.33 | -41.00 | -11.20 | 14.98 | -61.28 | 99.21 | 0.8735 | -601.7 | 999999 | |
| 1.75 | -41.00 | 1.79 | -41.00 | -11.44 | 14.69 | -61.57 | 99.50 | 0.8759 | -248.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
