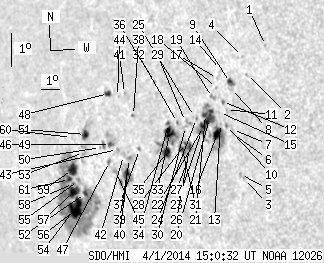

SDO HMI 2014-04-01 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.08 | 405.65 | 91.16 | 374.96 | -11.32 | 17.62 | -58.09 | 99.29 | 0.8441 | -60.7 | -60.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.73 | -8.46 | 26.02 | -49.69 | 95.57 | 0.7602 | 478.0 | 445.7 | |
| 0.00 | 0.79 | 0.00 | 0.61 | -9.24 | 24.97 | -50.75 | 96.62 | 0.7717 | 543.0 | 509.3 | |
| 0.00 | 1.32 | 0.00 | 1.04 | -12.32 | 24.13 | -51.58 | 100.59 | 0.7810 | 631.0 | 577.3 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -8.69 | 24.88 | -50.83 | 95.91 | 0.7728 | 606.0 | 565.6 | |
| 0.00 | 1.67 | 0.00 | 1.32 | -12.19 | 23.97 | -51.74 | 100.41 | 0.7827 | 442.0 | 424.8 | |
| 0.00 | 0.96 | 0.00 | 0.76 | -10.97 | 23.94 | -51.77 | 98.85 | 0.7828 | 636.0 | 553.1 | |
| 0.00 | 1.32 | 0.00 | 1.04 | -10.81 | 23.93 | -51.78 | 98.66 | 0.7829 | 623.0 | 476.9 | |
| 0.00 | 1.84 | 0.00 | 1.45 | -9.59 | 24.16 | -51.55 | 97.09 | 0.7804 | 635.0 | 584.7 | |
| 2.28 | 4.39 | 1.80 | 3.46 | -9.41 | 24.15 | -51.56 | 96.86 | 0.7806 | 726.8 | 629.7 | |
| 0.00 | 1.23 | 0.00 | 0.98 | -10.67 | 23.67 | -52.05 | 98.47 | 0.7857 | 625.0 | 575.0 | |
| 0.00 | 0.79 | 0.00 | 0.63 | -10.20 | 23.78 | -51.93 | 97.86 | 0.7845 | 703.0 | 624.1 | |
| 0.35 | 1.67 | 0.28 | 1.33 | -9.94 | 23.64 | -52.07 | 97.54 | 0.7860 | 638.8 | 566.3 | |
| 0.00 | 0.35 | 0.00 | 0.28 | -10.58 | 23.39 | -52.32 | 98.36 | 0.7886 | 605.0 | 498.0 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -8.98 | 23.75 | -51.96 | 96.31 | 0.7850 | 518.0 | 394.2 | |
| 0.00 | 0.61 | 0.00 | 0.49 | -10.25 | 23.42 | -52.29 | 97.94 | 0.7883 | 534.0 | 497.7 | |
| 6.49 | 27.02 | 5.23 | 21.78 | -10.87 | 23.17 | -52.55 | 98.72 | 0.7910 | 758.1 | 352.9 | |
| 0.00 | 1.05 | 0.00 | 0.84 | -9.24 | 23.55 | -52.17 | 96.64 | 0.7871 | 275.0 | 239.2 | |
| 0.00 | 1.05 | 0.00 | 0.84 | -9.50 | 23.44 | -52.27 | 96.98 | 0.7882 | 288.0 | 251.5 | |
| 0.00 | 2.98 | 0.00 | 2.40 | -9.78 | 23.18 | -52.54 | 97.34 | 0.7909 | 494.0 | 398.4 | |
| 9.21 | 31.58 | 7.47 | 25.73 | -10.39 | 22.88 | -52.83 | 98.11 | 0.7940 | 690.2 | 220.3 | |
| 2.19 | -20.00 | 1.79 | -20.00 | -10.25 | 22.71 | -53.00 | 97.94 | 0.7958 | 465.6 | 999999 | |
| 3.16 | -20.00 | 2.58 | -20.00 | -10.60 | 22.52 | -53.19 | 98.38 | 0.7977 | 349.9 | 999999 | |
| 2.02 | -20.00 | 1.65 | -20.00 | -10.74 | 22.38 | -53.33 | 98.55 | 0.7991 | -261.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 1.01 | -10.33 | 22.23 | -53.48 | 98.04 | 0.8007 | 315.0 | 198.4 | |
| 0.00 | 1.58 | 0.00 | 1.30 | -10.26 | 22.14 | -53.57 | 97.96 | 0.8016 | 253.0 | 215.0 | |
| 2.28 | 14.30 | 1.90 | 11.98 | -11.16 | 21.65 | -54.06 | 99.08 | 0.8066 | 708.3 | 398.1 | |
| 0.00 | 0.96 | 0.00 | 0.81 | -11.39 | 21.58 | -54.13 | 99.37 | 0.8073 | 230.0 | 241.2 | |
| 0.79 | -26.00 | 0.66 | -26.00 | -11.02 | 21.48 | -54.23 | 98.91 | 0.8084 | 574.9 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.66 | -10.37 | 21.65 | -54.06 | 98.10 | 0.8067 | 229.0 | 253.9 | |
| 0.00 | 1.32 | 0.00 | 1.10 | -10.51 | 21.61 | -54.10 | 98.28 | 0.8070 | -258.0 | -210.9 | |
| 3.16 | -26.00 | 2.66 | -26.00 | -11.18 | 21.27 | -54.44 | 99.11 | 0.8104 | 523.5 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.96 | -10.36 | 21.23 | -54.48 | 98.09 | 0.8109 | 72.0 | 21.2 | |
| 8.07 | 40.27 | 6.88 | 34.45 | -10.65 | 20.73 | -54.98 | 98.45 | 0.8159 | -485.0 | -112.1 | |
| 0.79 | -33.00 | 0.67 | -33.00 | -10.35 | 20.76 | -54.95 | 98.08 | 0.8157 | 486.7 | 999999 | |
| 5.97 | -33.00 | 5.12 | -33.00 | -11.19 | 20.42 | -55.30 | 99.12 | 0.8190 | 540.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.76 | -9.03 | 20.33 | -55.38 | 96.48 | 0.8201 | 336.0 | 205.6 | |
| 0.00 | 1.49 | 0.00 | 1.33 | -10.97 | 19.00 | -56.71 | 98.86 | 0.8327 | 255.0 | 243.9 | |
| 0.00 | 1.23 | 0.00 | 1.09 | -9.93 | 18.96 | -56.75 | 97.62 | 0.8333 | 311.0 | 260.0 | |
| 0.00 | 2.37 | 0.00 | 2.14 | -11.18 | 18.37 | -57.34 | 99.13 | 0.8387 | -394.0 | -325.2 | |
| 2.89 | 17.19 | 2.63 | 15.68 | -11.59 | 18.12 | -57.59 | 99.61 | 0.8409 | -613.9 | -205.9 | |
| 0.00 | 0.88 | 0.00 | 0.79 | -9.24 | 18.64 | -57.08 | 96.79 | 0.8365 | -480.0 | -383.2 | |
| 0.00 | 2.98 | 0.00 | 2.72 | -11.06 | 18.06 | -57.65 | 98.98 | 0.8415 | -535.0 | -376.0 | |
| 0.00 | 1.40 | 0.00 | 1.29 | -10.85 | 17.78 | -57.93 | 98.74 | 0.8441 | -666.0 | -520.6 | |
| 0.00 | 0.35 | 0.00 | 0.32 | -9.29 | 18.23 | -57.49 | 96.87 | 0.8403 | 331.0 | 296.2 | |
| 0.00 | 3.33 | 0.00 | 3.09 | -11.49 | 17.46 | -58.25 | 99.50 | 0.8470 | -416.0 | -320.9 | |
| 1.40 | 10.97 | 1.30 | 10.16 | -10.67 | 17.43 | -58.28 | 98.53 | 0.8474 | -739.3 | -414.6 | |
| 0.00 | 2.11 | 0.00 | 1.96 | -11.16 | 17.21 | -58.50 | 99.12 | 0.8493 | -575.0 | -531.5 | |
| 2.37 | 4.21 | 2.18 | 3.88 | -9.15 | 17.75 | -57.97 | 96.72 | 0.8448 | 365.4 | 132.0 | |
| 1.05 | 2.72 | 0.99 | 2.55 | -10.63 | 17.03 | -58.68 | 98.49 | 0.8510 | -394.2 | -334.1 | |
| 0.00 | 1.05 | 0.00 | 0.99 | -10.70 | 16.83 | -58.88 | 98.58 | 0.8528 | -209.0 | -253.8 | |
| 4.65 | 10.26 | 4.48 | 9.86 | -10.23 | 16.08 | -59.64 | 98.05 | 0.8596 | -608.9 | -459.0 | |
| 2.19 | 188.09 | 2.15 | 187.97 | -11.97 | 15.48 | -60.23 | 100.08 | 0.8645 | -799.0 | -116.2 | |
| 0.00 | 7.02 | 0.00 | 6.81 | -10.75 | 15.79 | -59.93 | 98.66 | 0.8620 | -550.0 | -493.0 | |
| 6.23 | -52.00 | 6.20 | -52.00 | -12.22 | 14.94 | -60.77 | 100.38 | 0.8691 | -795.0 | 999999 | |
| 0.00 | 2.02 | 0.00 | 1.99 | -11.55 | 15.20 | -60.51 | 99.60 | 0.8670 | -700.0 | -667.0 | |
| 12.54 | -52.00 | 12.59 | -52.00 | -12.41 | 14.62 | -61.10 | 100.59 | 0.8718 | -594.7 | 999999 | |
| 9.12 | -52.00 | 9.12 | -52.00 | -11.84 | 14.77 | -60.94 | 99.94 | 0.8705 | -497.0 | 999999 | |
| 0.70 | -52.00 | 0.70 | -52.00 | -11.61 | 14.86 | -60.85 | 99.67 | 0.8698 | -567.8 | 999999 | |
| 8.25 | -52.00 | 8.19 | -52.00 | -11.19 | 14.95 | -60.76 | 99.19 | 0.8691 | -617.4 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.35 | -10.24 | 15.21 | -60.50 | 98.08 | 0.8671 | -53.0 | -53.2 | |
| 1.93 | -52.00 | 1.94 | -52.00 | -11.46 | 14.66 | -61.05 | 99.51 | 0.8715 | -164.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
