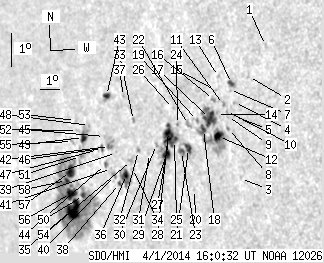

SDO HMI 2014-04-01 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.76 | 417.11 | 95.68 | 380.77 | -11.28 | 17.51 | -57.65 | 99.24 | 0.8401 | -92.3 | -73.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 1.25 | -8.39 | 26.00 | -49.16 | 95.46 | 0.7542 | 576.0 | 419.3 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -9.24 | 25.04 | -50.12 | 96.61 | 0.7648 | 477.0 | 478.9 | |
| 0.00 | 0.79 | 0.00 | 0.62 | -12.24 | 23.95 | -51.21 | 100.50 | 0.7770 | 485.0 | 389.8 | |
| 0.00 | 0.96 | 0.00 | 0.75 | -9.95 | 24.22 | -50.94 | 97.55 | 0.7738 | 644.0 | 584.5 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -10.37 | 24.13 | -51.03 | 98.09 | 0.7748 | 615.0 | 570.0 | |
| 2.02 | 3.51 | 1.57 | 2.73 | -9.38 | 24.20 | -50.96 | 96.80 | 0.7741 | 759.9 | 612.6 | |
| 0.00 | 1.40 | 0.00 | 1.10 | -9.55 | 24.07 | -51.10 | 97.02 | 0.7755 | 624.0 | 569.6 | |
| 0.00 | 1.40 | 0.00 | 1.10 | -10.70 | 23.76 | -51.40 | 98.51 | 0.7788 | 688.0 | 626.2 | |
| 0.00 | 0.96 | 0.00 | 0.76 | -10.34 | 23.79 | -51.37 | 98.05 | 0.7784 | 695.0 | 638.5 | |
| 0.00 | 0.61 | 0.00 | 0.48 | -10.19 | 23.78 | -51.38 | 97.85 | 0.7786 | 634.0 | 606.9 | |
| 0.00 | 1.58 | 0.00 | 1.24 | -9.97 | 23.68 | -51.48 | 97.57 | 0.7796 | 680.0 | 567.7 | |
| 6.32 | 61.32 | 5.02 | 49.08 | -10.89 | 23.21 | -51.95 | 98.76 | 0.7846 | 836.0 | 296.6 | |
| 0.00 | 1.14 | 0.00 | 0.90 | -9.11 | 23.62 | -51.54 | 96.47 | 0.7804 | 448.0 | 317.2 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -10.23 | 23.27 | -51.89 | 97.91 | 0.7840 | 689.0 | 626.6 | |
| 0.00 | 0.79 | 0.00 | 0.63 | -9.52 | 23.39 | -51.78 | 96.99 | 0.7829 | 348.0 | 283.2 | |
| 0.00 | 1.93 | 0.00 | 1.53 | -9.77 | 23.23 | -51.93 | 97.33 | 0.7845 | 513.0 | 448.1 | |
| 11.05 | -12.00 | 8.85 | -12.00 | -10.32 | 22.90 | -52.26 | 98.03 | 0.7879 | 665.3 | 999999 | |
| 2.89 | -12.00 | 2.34 | -12.00 | -10.62 | 22.53 | -52.63 | 98.41 | 0.7919 | 211.5 | 999999 | |
| 0.00 | 1.67 | 0.00 | 1.35 | -10.33 | 22.30 | -52.86 | 98.04 | 0.7943 | 267.0 | 182.8 | |
| 0.00 | 0.44 | 0.00 | 0.36 | -12.36 | 21.59 | -53.57 | 100.58 | 0.8018 | 351.0 | 350.0 | |
| 3.77 | 13.51 | 3.11 | 11.18 | -11.12 | 21.64 | -53.53 | 99.03 | 0.8012 | 652.3 | 339.0 | |
| 0.00 | 3.86 | 0.00 | 3.17 | -10.40 | 21.82 | -53.34 | 98.14 | 0.7993 | 378.0 | 289.2 | |
| 1.93 | -21.00 | 1.60 | -21.00 | -11.17 | 21.26 | -53.90 | 99.10 | 0.8051 | 532.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.73 | -10.35 | 21.26 | -53.90 | 98.08 | 0.8050 | 127.0 | 146.2 | |
| 3.25 | 40.18 | 2.71 | 33.90 | -10.81 | 20.99 | -54.17 | 98.65 | 0.8078 | -543.4 | -42.4 | |
| 0.00 | 1.14 | 0.00 | 0.95 | -9.86 | 21.18 | -53.98 | 97.47 | 0.8059 | 427.0 | 353.8 | |
| 6.58 | -25.00 | 5.54 | -25.00 | -10.79 | 20.68 | -54.48 | 98.62 | 0.8109 | -719.5 | 999999 | |
| 7.11 | -25.00 | 5.98 | -25.00 | -10.52 | 20.75 | -54.41 | 98.29 | 0.8102 | -27.0 | 999999 | |
| 5.79 | -25.00 | 4.90 | -25.00 | -11.19 | 20.46 | -54.70 | 99.12 | 0.8131 | 583.8 | 999999 | |
| 0.00 | 1.75 | 0.00 | 1.50 | -10.85 | 20.02 | -55.14 | 98.70 | 0.8174 | 282.0 | 177.5 | |
| 0.00 | 0.53 | 0.00 | 0.45 | -11.08 | 19.58 | -55.58 | 98.98 | 0.8218 | -322.0 | -245.7 | |
| 0.00 | 1.93 | 0.00 | 1.69 | -10.94 | 19.02 | -56.14 | 98.81 | 0.8273 | 412.0 | 263.6 | |
| 0.00 | 1.75 | 0.00 | 1.54 | -10.02 | 19.00 | -56.16 | 97.71 | 0.8276 | 295.0 | 218.5 | |
| 0.00 | 1.75 | 0.00 | 1.56 | -11.44 | 18.53 | -56.63 | 99.42 | 0.8319 | -596.0 | -441.0 | |
| 0.00 | 2.46 | 0.00 | 2.18 | -11.20 | 18.55 | -56.61 | 99.13 | 0.8317 | -329.0 | -239.4 | |
| 3.42 | 15.88 | 3.07 | 14.28 | -11.58 | 18.15 | -57.01 | 99.60 | 0.8355 | -671.3 | -243.6 | |
| 0.00 | 0.96 | 0.00 | 0.85 | -9.26 | 18.64 | -56.52 | 96.80 | 0.8312 | -435.0 | -387.8 | |
| 1.14 | -36.00 | 1.03 | -36.00 | -11.81 | 17.68 | -57.49 | 99.88 | 0.8399 | 373.5 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.48 | -10.88 | 17.80 | -57.36 | 98.76 | 0.8388 | -562.0 | -554.8 | |
| 0.00 | 2.54 | 0.00 | 2.32 | -11.55 | 17.47 | -57.69 | 99.56 | 0.8418 | -244.0 | -220.2 | |
| 0.00 | 0.53 | 0.00 | 0.48 | -11.33 | 17.37 | -57.79 | 99.30 | 0.8428 | -684.0 | -685.7 | |
| 1.49 | 7.98 | 1.36 | 7.27 | -10.67 | 17.46 | -57.70 | 98.51 | 0.8420 | -713.4 | -527.8 | |
| 3.07 | 5.00 | 2.78 | 4.54 | -9.14 | 17.72 | -57.44 | 96.69 | 0.8400 | 369.9 | 56.7 | |
| 0.79 | 2.19 | 0.73 | 2.02 | -11.18 | 17.07 | -58.09 | 99.13 | 0.8455 | -636.7 | -517.7 | |
| 0.00 | 0.96 | 0.00 | 0.89 | -10.34 | 17.27 | -57.89 | 98.13 | 0.8438 | -119.0 | -128.3 | |
| 1.14 | 2.37 | 1.05 | 2.19 | -10.69 | 17.05 | -58.11 | 98.55 | 0.8458 | -341.5 | -292.8 | |
| 0.00 | 1.49 | 0.00 | 1.38 | -10.70 | 16.82 | -58.34 | 98.56 | 0.8479 | -226.0 | -207.0 | |
| 0.00 | 1.05 | 0.00 | 0.99 | -9.94 | 16.52 | -58.64 | 97.67 | 0.8508 | -610.0 | -559.6 | |
| 3.95 | 12.02 | 3.74 | 11.37 | -10.26 | 16.07 | -59.10 | 98.06 | 0.8548 | -639.2 | -456.7 | |
| 2.19 | 198.25 | 2.11 | 194.63 | -11.97 | 15.49 | -59.67 | 100.07 | 0.8596 | -824.8 | -155.8 | |
| 0.00 | 6.67 | 0.00 | 6.38 | -10.80 | 15.71 | -59.45 | 98.71 | 0.8578 | -598.0 | -522.0 | |
| 0.00 | 1.67 | 0.00 | 1.59 | -10.02 | 15.78 | -59.38 | 97.79 | 0.8574 | -233.0 | -201.2 | |
| 0.00 | 1.49 | 0.00 | 1.43 | -9.71 | 15.75 | -59.41 | 97.43 | 0.8578 | -331.0 | -220.5 | |
| 19.12 | -50.00 | 18.82 | -50.00 | -12.32 | 14.74 | -60.42 | 100.49 | 0.8661 | -672.1 | 999999 | |
| 0.00 | 3.07 | 0.00 | 2.97 | -10.31 | 15.38 | -59.78 | 98.15 | 0.8608 | -180.0 | -121.5 | |
| 9.12 | -50.00 | 8.98 | -50.00 | -11.83 | 14.74 | -60.43 | 99.92 | 0.8662 | -483.3 | 999999 | |
| 8.60 | -50.00 | 8.40 | -50.00 | -11.19 | 14.97 | -60.19 | 99.17 | 0.8643 | -635.7 | 999999 | |
| 2.02 | -50.00 | 1.99 | -50.00 | -11.43 | 14.63 | -60.53 | 99.46 | 0.8671 | -164.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
