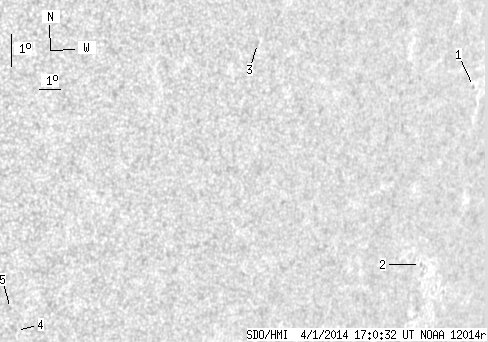

SDO HMI 2014-04-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.52 | 0.00 | 4.37 | -13.19 | 125.77 | 51.16 | 257.87 | 0.7730 | -7.0 | 173.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.93 | -10.45 | 134.21 | 59.60 | 261.70 | 0.8593 | 471.0 | 404.5 | |
| 0.00 | 0.96 | 0.00 | 0.90 | -16.00 | 133.19 | 58.58 | 255.18 | 0.8506 | 458.0 | 406.8 | |
| 0.00 | 2.28 | 0.00 | 1.68 | -10.17 | 122.88 | 48.27 | 262.17 | 0.7439 | 234.0 | 271.2 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -19.56 | 114.80 | 40.19 | 247.57 | 0.6602 | -577.0 | -532.6 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -18.91 | 114.36 | 39.75 | 248.40 | 0.6529 | -621.0 | -502.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
