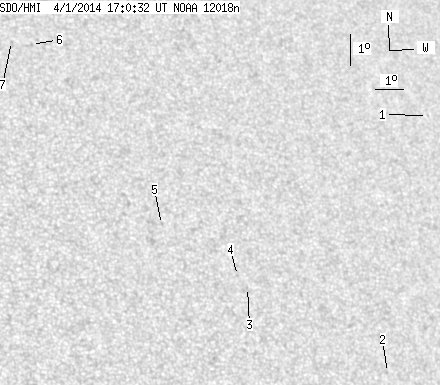

SDO HMI 2014-04-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.09 | 0.00 | 3.11 | 15.83 | 102.32 | 27.71 | 309.76 | 0.5870 | 526.6 | 423.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.36 | 18.24 | 111.43 | 36.82 | 304.91 | 0.6964 | 315.0 | 322.2 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 9.84 | 108.40 | 33.79 | 295.62 | 0.6099 | 651.0 | 398.2 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 12.22 | 103.67 | 29.06 | 302.91 | 0.5676 | 815.0 | 712.0 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 12.58 | 103.36 | 28.75 | 303.73 | 0.5667 | 455.0 | 364.2 | |
| 0.00 | 0.61 | 0.00 | 0.36 | 14.07 | 100.91 | 26.30 | 308.37 | 0.5502 | 207.0 | 238.4 | |
| 0.00 | 1.23 | 0.00 | 0.74 | 19.76 | 97.22 | 22.61 | 320.20 | 0.5676 | 726.0 | 576.0 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 19.83 | 96.55 | 21.94 | 321.13 | 0.5622 | 517.0 | 395.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
