SDO HMI 2014-04-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.97 | 69.21 | 25.56 | 82.99 | -8.32 | 8.48 | -66.13 | 96.22 | 0.9106 | 248.6 | 163.3 | |
|
previous
or next observation for the same group /

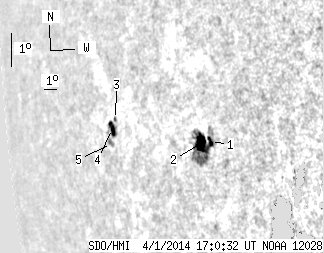

back to the solar disc SDO HMI 2014-04-01 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.72 | 54.30 | 2.98 | 60.75 | -8.62 | 10.90 | -63.71 | 96.38 | 0.8939 | 713.7 | 227.8 | |
| 12.46 | -1.00 | 13.97 | -1.00 | -8.61 | 10.20 | -64.41 | 96.41 | 0.8992 | 561.9 | 999999 | |
| 0.00 | 1.75 | 0.00 | 2.57 | -7.21 | 3.85 | -70.76 | 95.35 | 0.9423 | -266.0 | -310.0 | |
| 5.79 | 9.65 | 8.61 | 14.38 | -7.45 | 3.48 | -71.13 | 95.62 | 0.9443 | -343.7 | -73.0 | |
| 0.00 | 3.51 | 0.00 | 5.29 | -7.87 | 3.21 | -71.40 | 96.09 | 0.9456 | 101.0 | 117.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
