SDO HMI 2014-04-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.07 | 0.00 | 3.83 | -19.17 | 122.16 | 48.10 | 249.61 | 0.7456 | 19.4 | -1.4 | |
|
previous
or next observation for the same group /

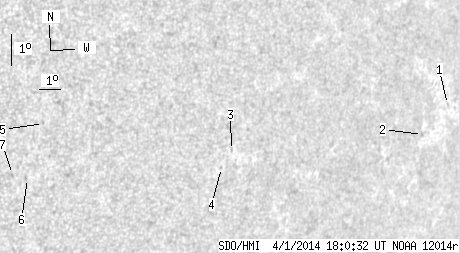

back to the solar disc SDO HMI 2014-04-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.26 | -16.63 | 134.45 | 60.39 | 254.52 | 0.8664 | 333.0 | 339.7 | |
| 0.00 | 0.70 | 0.00 | 0.67 | -17.66 | 133.42 | 59.36 | 253.28 | 0.8581 | 581.0 | 522.9 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -19.03 | 123.61 | 49.55 | 250.52 | 0.7654 | 356.0 | 353.6 | |
| 0.00 | 1.05 | 0.00 | 0.80 | -19.59 | 123.35 | 49.29 | 249.76 | 0.7634 | 378.0 | 273.1 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -18.86 | 115.05 | 40.99 | 248.86 | 0.6679 | -572.0 | -473.2 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -20.58 | 114.91 | 40.85 | 246.30 | 0.6711 | -309.0 | -390.0 | |
| 0.00 | 1.40 | 0.00 | 0.93 | -20.50 | 114.25 | 40.19 | 246.19 | 0.6630 | -631.0 | -561.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
