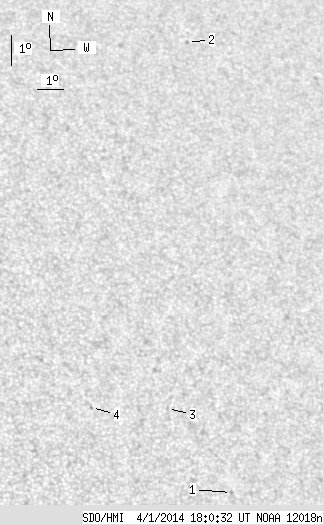

SDO HMI 2014-04-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.92 | 0.00 | 3.18 | 15.35 | 107.53 | 33.47 | 303.16 | 0.6415 | 241.0 | 116.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.83 | 9.85 | 108.44 | 34.38 | 295.23 | 0.6173 | 693.0 | 516.2 | |
| 0.00 | 1.32 | 0.00 | 0.95 | 24.65 | 110.03 | 35.97 | 312.99 | 0.7323 | -579.0 | -481.3 | |
| 0.00 | 1.32 | 0.00 | 0.82 | 12.35 | 106.42 | 32.37 | 300.34 | 0.6082 | 91.0 | 75.4 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 12.22 | 103.68 | 29.63 | 302.40 | 0.5744 | 759.0 | 583.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
