SDO HMI 2014-04-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.38 | 0.00 | 2.97 | -24.22 | 114.88 | 40.83 | 241.06 | 0.6834 | -189.8 | -158.5 | |
|
previous
or next observation for the same group /

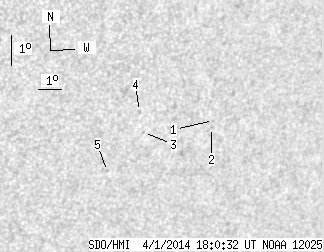

back to the solar disc SDO HMI 2014-04-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.67 | -23.93 | 116.83 | 42.78 | 242.22 | 0.7039 | 323.0 | 309.3 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -24.16 | 116.84 | 42.78 | 241.92 | 0.7047 | 442.0 | 372.4 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -24.52 | 113.99 | 39.93 | 240.30 | 0.6747 | -357.0 | -329.2 | |
| 0.00 | 1.49 | 0.00 | 0.99 | -23.88 | 113.58 | 39.52 | 241.03 | 0.6675 | -696.0 | -538.5 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -25.84 | 112.95 | 38.90 | 237.97 | 0.6689 | -661.0 | -574.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
