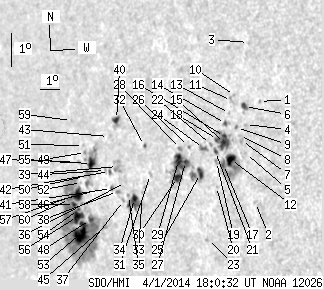

SDO HMI 2014-04-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.47 | 420.49 | 85.42 | 372.35 | -11.26 | 17.64 | -56.42 | 99.20 | 0.8285 | -108.2 | -61.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.66 | -9.27 | 24.98 | -49.08 | 96.63 | 0.7531 | 638.0 | 504.3 | |
| 0.00 | 1.67 | 0.00 | 1.27 | -12.26 | 24.11 | -49.94 | 100.57 | 0.7632 | 597.0 | 514.8 | |
| 0.00 | 0.70 | 0.00 | 0.53 | -7.47 | 24.78 | -49.28 | 94.25 | 0.7559 | 584.0 | 494.5 | |
| 0.00 | 0.88 | 0.00 | 0.67 | -9.90 | 24.19 | -49.86 | 97.47 | 0.7619 | 627.0 | 539.3 | |
| 0.00 | 0.96 | 0.00 | 0.74 | -10.76 | 24.00 | -50.05 | 98.60 | 0.7640 | 755.0 | 633.7 | |
| 2.11 | 3.68 | 1.60 | 2.80 | -9.36 | 24.26 | -49.80 | 96.76 | 0.7612 | 788.2 | 649.9 | |
| 0.00 | 2.37 | 0.00 | 1.81 | -10.36 | 23.90 | -50.15 | 98.07 | 0.7651 | 719.0 | 604.3 | |
| 0.00 | 0.96 | 0.00 | 0.74 | -10.20 | 23.84 | -50.22 | 97.87 | 0.7658 | 738.0 | 656.5 | |
| 0.00 | 1.40 | 0.00 | 1.08 | -9.95 | 23.75 | -50.30 | 97.54 | 0.7668 | 750.0 | 652.2 | |
| 0.00 | 0.96 | 0.00 | 0.74 | -8.99 | 23.85 | -50.20 | 96.28 | 0.7658 | 384.0 | 367.8 | |
| 0.00 | 2.19 | 0.00 | 1.69 | -9.13 | 23.68 | -50.37 | 96.47 | 0.7676 | 418.0 | 374.5 | |
| 7.72 | 36.75 | 5.99 | 28.56 | -10.88 | 23.25 | -50.80 | 98.74 | 0.7723 | 884.9 | 257.3 | |
| 0.00 | 1.14 | 0.00 | 0.88 | -9.51 | 23.51 | -50.55 | 96.96 | 0.7695 | 257.0 | 263.4 | |
| 0.88 | 3.07 | 0.68 | 2.38 | -9.79 | 23.26 | -50.80 | 97.33 | 0.7722 | 455.6 | 454.6 | |
| 6.49 | 27.98 | 5.06 | 21.84 | -10.38 | 23.08 | -50.98 | 98.09 | 0.7742 | 763.0 | 473.0 | |
| 1.93 | -15.00 | 1.50 | -15.00 | -10.17 | 23.13 | -50.93 | 97.83 | 0.7737 | 667.5 | 999999 | |
| 1.93 | -12.00 | 1.51 | -12.00 | -11.00 | 22.88 | -51.17 | 98.89 | 0.7763 | 366.0 | 999999 | |
| 1.58 | -15.00 | 1.24 | -15.00 | -10.23 | 22.77 | -51.29 | 97.90 | 0.7775 | 408.9 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.66 | -10.88 | 22.57 | -51.49 | 98.74 | 0.7797 | 436.0 | 269.2 | |
| 0.00 | 0.35 | 0.00 | 0.28 | -11.62 | 22.38 | -51.68 | 99.69 | 0.7818 | -493.0 | -426.0 | |
| 1.14 | -15.00 | 0.90 | -15.00 | -10.58 | 22.59 | -51.46 | 98.35 | 0.7795 | 336.3 | 999999 | |
| 0.00 | 1.49 | 0.00 | 1.18 | -10.35 | 22.40 | -51.66 | 98.06 | 0.7815 | 359.0 | 242.6 | |
| 0.00 | 1.23 | 0.00 | 0.99 | -13.15 | 21.49 | -52.57 | 101.62 | 0.7917 | 450.0 | 439.4 | |
| 1.32 | 4.56 | 1.05 | 3.63 | -10.44 | 22.03 | -52.02 | 98.17 | 0.7855 | 401.9 | 155.3 | |
| 3.77 | 13.33 | 3.03 | 10.74 | -11.16 | 21.70 | -52.36 | 99.10 | 0.7890 | 726.5 | 464.7 | |
| 0.00 | 1.05 | 0.00 | 0.85 | -10.31 | 21.31 | -52.75 | 98.01 | 0.7931 | 382.0 | 204.2 | |
| 1.23 | 36.40 | 1.00 | 29.88 | -10.74 | 21.05 | -53.01 | 98.56 | 0.7958 | -796.9 | -160.2 | |
| 0.00 | 2.11 | 0.00 | 1.72 | -10.33 | 20.90 | -53.16 | 98.05 | 0.7974 | 632.0 | 432.9 | |
| 6.32 | -27.00 | 5.18 | -27.00 | -10.68 | 20.71 | -53.35 | 98.48 | 0.7994 | -413.2 | 999999 | |
| 4.56 | -27.00 | 3.76 | -27.00 | -11.18 | 20.52 | -53.53 | 99.11 | 0.8013 | 686.1 | 999999 | |
| 0.00 | 1.67 | 0.00 | 1.42 | -10.96 | 19.16 | -54.89 | 98.84 | 0.8150 | 412.0 | 286.3 | |
| 0.53 | 1.58 | 0.45 | 1.34 | -10.08 | 19.08 | -54.98 | 97.75 | 0.8159 | 207.5 | 185.2 | |
| 0.00 | 0.70 | 0.00 | 0.61 | -11.46 | 18.59 | -55.47 | 99.45 | 0.8207 | -544.0 | -523.5 | |
| 3.07 | 16.40 | 2.68 | 14.32 | -11.60 | 18.11 | -55.95 | 99.61 | 0.8253 | -685.8 | -166.6 | |
| 0.00 | 1.32 | 0.00 | 1.16 | -11.48 | 17.82 | -56.24 | 99.47 | 0.8282 | -571.0 | -533.9 | |
| 0.00 | 0.88 | 0.00 | 0.77 | -11.08 | 17.77 | -56.29 | 98.99 | 0.8286 | -355.0 | -322.6 | |
| 0.00 | 1.32 | 0.00 | 1.17 | -11.60 | 17.50 | -56.56 | 99.62 | 0.8312 | -65.0 | -106.7 | |
| 0.35 | 1.93 | 0.31 | 1.72 | -11.30 | 17.26 | -56.80 | 99.26 | 0.8335 | -750.8 | -691.8 | |
| 0.00 | 8.51 | 0.00 | 7.54 | -10.56 | 17.48 | -56.58 | 98.37 | 0.8315 | -735.0 | -531.9 | |
| 3.25 | 7.19 | 2.86 | 6.34 | -9.17 | 17.79 | -56.26 | 96.68 | 0.8288 | 416.6 | -137.3 | |
| 0.79 | 1.93 | 0.71 | 1.73 | -11.18 | 16.96 | -57.10 | 99.12 | 0.8364 | -605.9 | -544.2 | |
| 0.70 | 2.19 | 0.63 | 1.97 | -10.67 | 17.00 | -57.06 | 98.50 | 0.8360 | -414.6 | -409.0 | |
| 0.00 | 0.44 | 0.00 | 0.39 | -9.63 | 17.23 | -56.83 | 97.25 | 0.8340 | -423.0 | -408.2 | |
| 0.00 | 1.49 | 0.00 | 1.35 | -10.62 | 16.79 | -57.27 | 98.45 | 0.8380 | -354.0 | -256.4 | |
| 0.00 | 3.42 | 0.00 | 3.14 | -12.27 | 16.20 | -57.86 | 100.42 | 0.8434 | -523.0 | -472.0 | |
| 0.00 | 0.79 | 0.00 | 0.73 | -11.16 | 16.05 | -58.01 | 99.10 | 0.8448 | -620.0 | -572.8 | |
| 5.96 | 27.89 | 5.49 | 25.68 | -10.34 | 16.07 | -57.99 | 98.13 | 0.8448 | -684.7 | -480.7 | |
| 1.75 | 186.13 | 1.64 | 177.58 | -11.98 | 15.47 | -58.58 | 100.08 | 0.8500 | -862.6 | -119.6 | |
| 0.00 | 1.40 | 0.00 | 1.30 | -9.98 | 15.82 | -58.23 | 97.71 | 0.8471 | -56.0 | -129.5 | |
| 0.00 | 1.32 | 0.00 | 1.23 | -10.68 | 15.55 | -58.50 | 98.55 | 0.8494 | -265.0 | -263.4 | |
| 0.00 | 0.70 | 0.00 | 0.65 | -9.76 | 15.77 | -58.29 | 97.45 | 0.8476 | -300.0 | -202.4 | |
| 0.00 | 0.70 | 0.00 | 0.66 | -10.84 | 15.33 | -58.73 | 98.74 | 0.8514 | -236.0 | -263.5 | |
| 20.09 | -48.00 | 19.14 | -48.00 | -12.34 | 14.75 | -59.31 | 100.51 | 0.8565 | -734.7 | 999999 | |
| 1.23 | -48.00 | 1.17 | -48.00 | -11.62 | 14.89 | -59.17 | 99.66 | 0.8553 | -609.0 | 999999 | |
| 0.00 | 1.49 | 0.00 | 1.40 | -10.24 | 15.34 | -58.72 | 98.03 | 0.8515 | -163.0 | -135.9 | |
| 8.07 | -48.00 | 7.69 | -48.00 | -11.82 | 14.75 | -59.30 | 99.90 | 0.8564 | -556.1 | 999999 | |
| 8.51 | -48.00 | 8.06 | -48.00 | -11.18 | 14.98 | -59.08 | 99.14 | 0.8545 | -666.3 | 999999 | |
| 1.93 | -48.00 | 1.84 | -48.00 | -11.45 | 14.70 | -59.35 | 99.47 | 0.8569 | -297.6 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.83 | -8.96 | 15.28 | -58.77 | 96.52 | 0.8523 | -253.0 | -188.4 | |
| 0.26 | -48.00 | 0.25 | -48.00 | -11.28 | 14.46 | -59.60 | 99.26 | 0.8591 | 383.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
