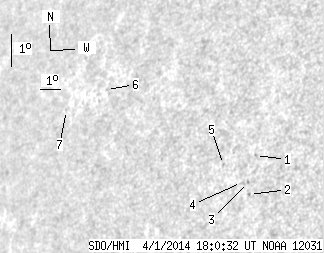

SDO HMI 2014-04-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.15 | 0.00 | 4.86 | 5.64 | 24.26 | -49.80 | 77.37 | 0.7794 | -264.9 | -245.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.65 | 5.32 | 27.02 | -47.04 | 76.93 | 0.7504 | -429.0 | -311.6 | |
| 0.00 | 1.23 | 0.00 | 0.92 | 4.15 | 26.85 | -47.20 | 78.51 | 0.7491 | -633.0 | -606.8 | |
| 0.00 | 1.14 | 0.00 | 0.85 | 4.52 | 26.78 | -47.28 | 78.05 | 0.7509 | -580.0 | -503.4 | |
| 0.00 | 0.44 | 0.00 | 0.33 | 4.55 | 26.46 | -47.59 | 78.10 | 0.7545 | -479.0 | -464.0 | |
| 0.00 | 0.88 | 0.00 | 0.67 | 5.17 | 25.59 | -48.47 | 77.56 | 0.7657 | -335.0 | -290.3 | |
| 0.00 | 1.05 | 0.00 | 0.94 | 8.03 | 19.47 | -54.59 | 75.82 | 0.8345 | 305.0 | 219.6 | |
| 0.00 | 0.53 | 0.00 | 0.50 | 7.58 | 17.40 | -56.66 | 76.88 | 0.8524 | 297.0 | 273.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
