SDO HMI 2014-04-01 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.07 | 38.93 | 10.39 | 30.81 | 17.03 | 27.47 | -46.03 | 61.97 | 0.7817 | 209.5 | 140.0 | |
|
previous
or next observation for the same group /

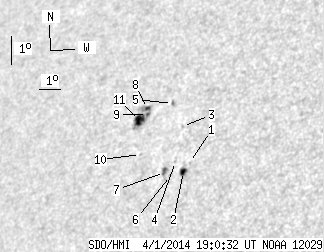

back to the solar disc SDO HMI 2014-04-01 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.46 | 15.98 | 29.37 | -44.13 | 62.28 | 0.7585 | -496.0 | -408.4 | |
| 2.98 | 5.26 | 2.26 | 3.99 | 15.71 | 29.19 | -44.32 | 62.70 | 0.7591 | -731.1 | -567.0 | |
| 0.00 | 1.05 | 0.00 | 0.81 | 17.20 | 28.71 | -44.80 | 61.16 | 0.7707 | -506.0 | -377.8 | |
| 0.00 | 0.88 | 0.00 | 0.67 | 16.06 | 28.74 | -44.77 | 62.50 | 0.7653 | -146.0 | -133.7 | |
| 0.00 | 1.58 | 0.00 | 1.25 | 18.00 | 28.00 | -45.50 | 60.57 | 0.7812 | 598.0 | 520.6 | |
| 0.00 | 1.05 | 0.00 | 0.81 | 15.62 | 28.64 | -44.86 | 63.08 | 0.7643 | -346.0 | -254.5 | |
| 0.00 | 4.82 | 0.00 | 3.71 | 15.74 | 28.34 | -45.16 | 63.08 | 0.7678 | 222.0 | 53.9 | |
| 1.58 | 23.07 | 1.27 | 18.62 | 17.94 | 26.89 | -46.62 | 61.20 | 0.7914 | 505.4 | 340.0 | |
| 0.79 | -8.00 | 0.63 | -8.00 | 17.74 | 26.95 | -46.55 | 61.40 | 0.7898 | 703.7 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.49 | 16.43 | 27.06 | -46.45 | 62.88 | 0.7833 | 510.0 | 448.0 | |
| 7.72 | -8.00 | 6.23 | -8.00 | 17.57 | 26.64 | -46.86 | 61.74 | 0.7920 | 702.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
